SOS Cleanroom Texwipe TX701 Large Paddle Head Alpha Polyester Cleanroom Swab - Case

Product Description

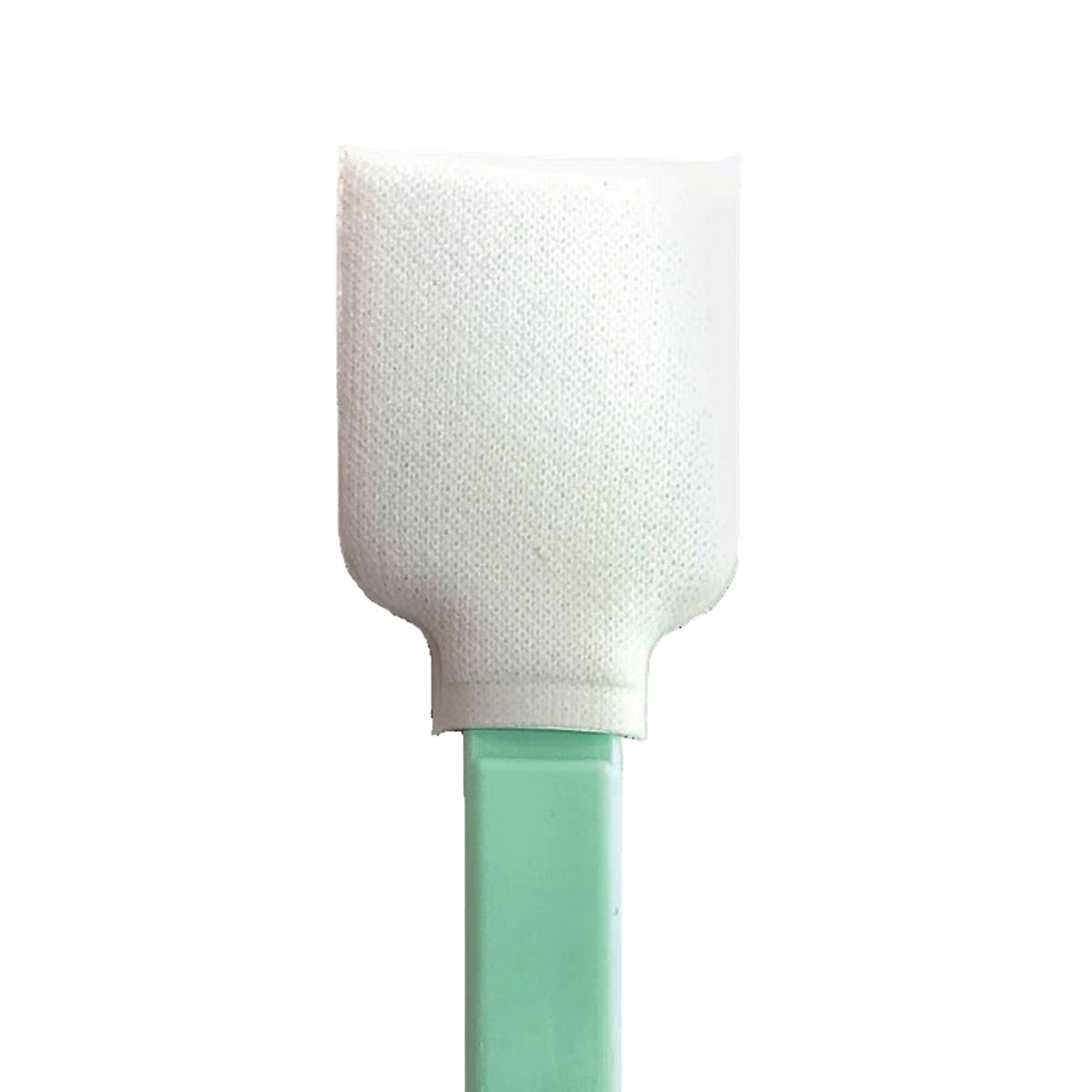

Texwipe TX701 is an extra-large, paddle-head Alpha® polyester knit cleanroom swab built for critical cleaning and controlled solution application/removal when a standard swab does not provide enough contact area per pass. The double-layer 100% polyester knit head increases absorbency and mechanical pickup for thin films, light residues, and particulate on broader flats, tooling faces, fixture lands, wide slots, and gently contoured surfaces. A complete thermal bond construction eliminates adhesive at the head/handle interface (a common source of residue variability in solvent work), and the virgin polypropylene handle provides chemical resistance and clean handling. TX701 is cleanroom laundered for ultra-low background contribution and is supplied lot coded in a silicone-free and amide-free bag to support contamination investigations, process standardization, and repeatable line-side execution. Low-linting performance is process-dependent (no swab is truly ‘lint-free’ in every surface condition and technique).

• SKU: TX701 BAG
• Type: Dry swab (non-sterile)
• Swab family: Alpha®
• Swab material: Polyester (knit)
• Head material: Knitted Alpha® polyester (double layer)
• Handle material: 100% virgin polypropylene
• Head bond: Thermal (complete thermal bond; no adhesive)
• Handle color: Light green
• Design notes: Flat large head; long handle (paddle-head geometry for wider contact patch)
• Dimensions:
  • Head width: 25.30 mm (0.996")
  • Head thickness: 5.25 mm (0.207")
  • Head length: 35.5 mm (1.398")
  • Handle width: 10 mm (0.393")
  • Handle thickness: 3.80 mm (0.149")
  • Handle length: 91.5 mm (3.602")
  • Total swab length: 127.0 mm (5.000")
