Product Overview

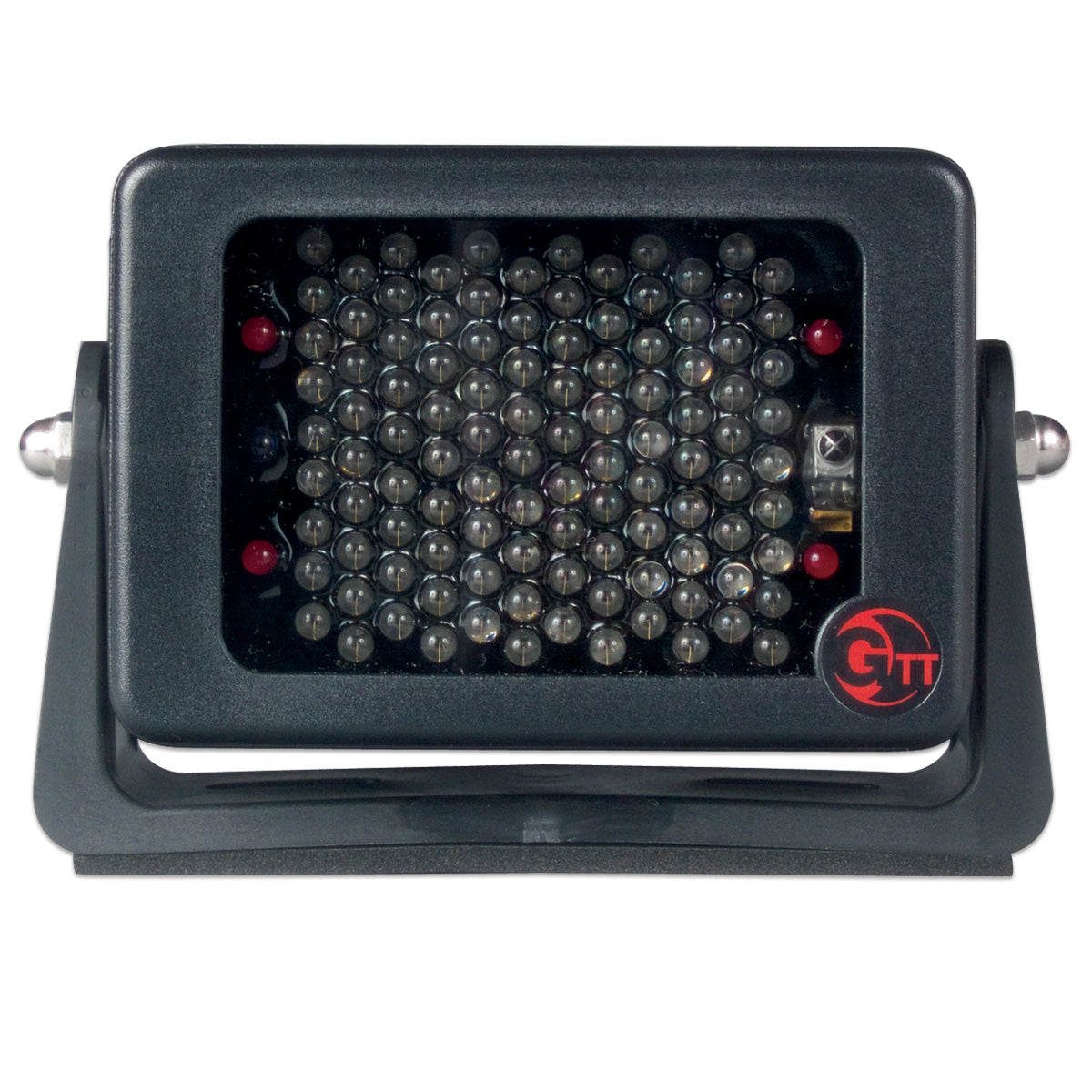

Soundoff Signal EGTTE794H Opticom™ Infrared Led Emitter Module - Model 794H (Non-Lightbar Version) Includes Bracket & Mounting Hardware, 25 Ft Cable W/ Mating Connector
Features
- Provides emergency vehicle preemption to all intersections equipped with Opticom Infrared systems. Module generates a series of pulses in the infrared wavelength to allow preemption for emergency vehicles
- High efficiency LEDs require up to 90% less electrical power than conventional emitters, conserving power for other onboard emergency equipment. LED technology provides a higher level of consistent performance over the life of the emitter
- Built-in power supply simplifies installation
- Coded signal transmissions allow traffic officials to manage, track and control usage of the Opticom system and to block unauthorized vehicles from using it
- Visible indicator lights provide operational status and advanced diagnostic information
Additional Information
CertificationsSAE J575 Class 1 certified, J455 certified
Dimensions4.5: (11.5 cm) W x 3.16" (8.0) H x 2.23" (5.7 cm) D
Input Voltage Range10-32 VDC
Operating Temperature-30° C to +65° C
Light SyncYes
