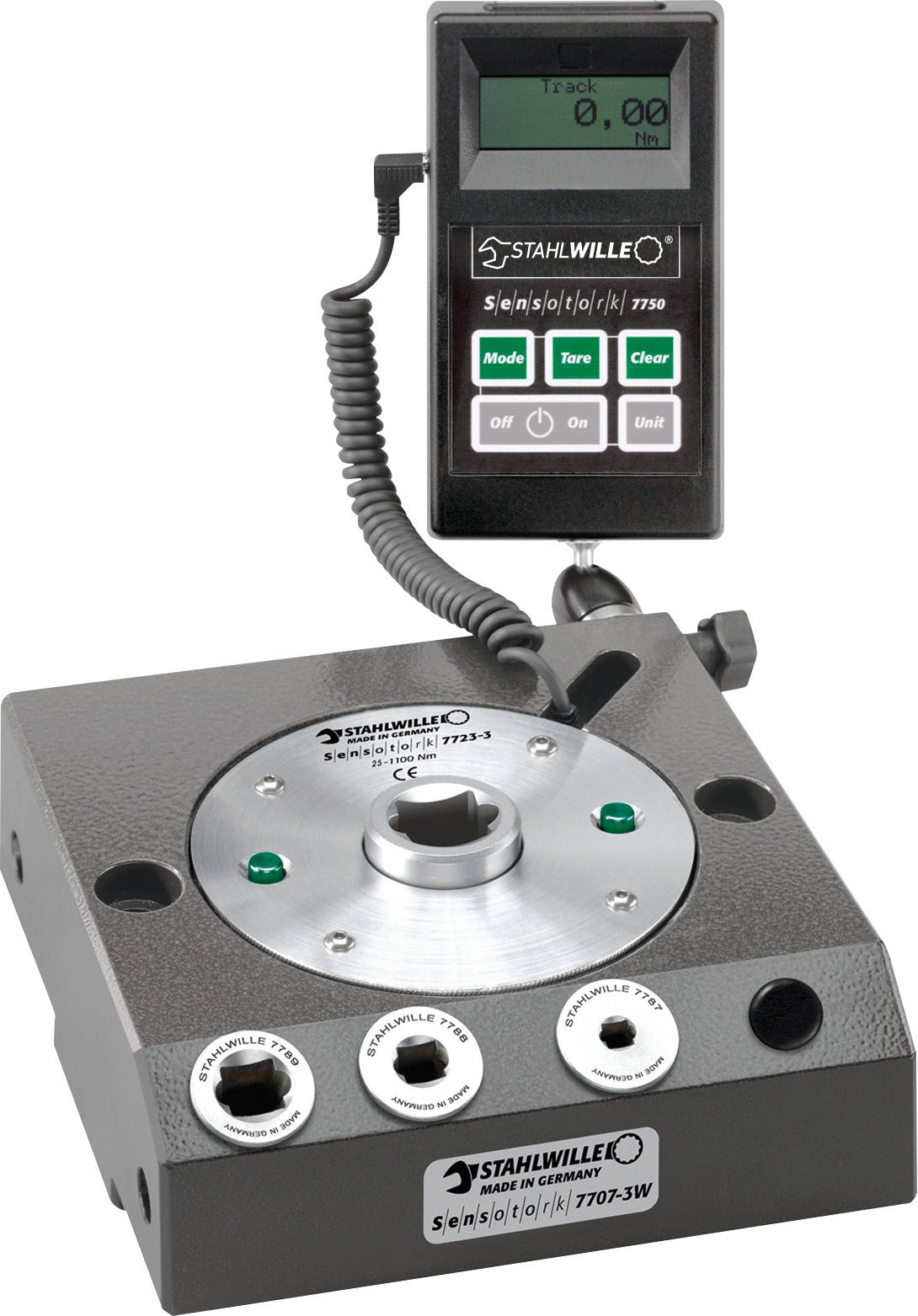

Stahlwille 96521082 7707N-3W Electronic Workshop Tester Sensotork®

Product Description

Stahlwille - 96521082

• Electronic workshop tester for checking and adjusting indicating and triggering torque wrenches.
• Simple, quick and reliable testing of torque wrenches to ensure quality in production.
• Measurement in the large torque range up to 1.100 N·m.
• Simple exchange of transducers enables quick adjustment to different measuring tasks and specific testing requirements.
• The interchangeable square adapters in the mounting block allow flexible use with standard square drive sizes.

Features

The QuickRelease safety lock helps you to quickly mount and change transducers. The sensors lock into the calibration system adapter and only unlock again at the push of a button.

Properties

• for testing indicating and triggering torque screwdrivers
• compact electronic testing device consisting of:

1 patented transducer

1 safety lock

1 display device

1 stand with 1.5 metre cable for the display unit

1 spiral cable

1 power supply (110 V-230 with interchangeable plug adapters)

4 interchangeable square drive adapters for the square drive

• large LCD display for optimum readability
• horizontal or vertical installations
• for controlled right and left measuring
• 3 operating modes: running display of the applied torque (Track), display of the torque on triggering/kink point detection (First-Peak), peak value display (Peak-Hold)
• additional control from the display of the actual tightened torque on triggering torque wrenches
• with QuickRelease security lock
• low transverse forces due to flat transducers
• automatic detection of transducers
• particularly large measurement range from about 2% to 100% of the nominal value
• 3 measuring units (N·m, ft·lb, in·lb)
• software No. 7759-4, including USB adapter and jack cable, allows the measured values to be transmitted to a PC (no additional external power source, power from the PC)
• when recalibrating the individual transducers, the test equipment remains operational on site
• complies with the specifications of guideline DKD-R 10-8
• with certificate
• delivered in a sturdy plastic box
