category:
Torque Tools
country_of_origin:
Germany
data_sheet:
https://cdn.dualityjs.com/api/download/stahlwille/mam/2022/11/3a/eac0fec7-57b7-4b3d-8749-7d4113979836.pdf?filename=91974011-ba-smartcheck-angle-de-en-fr.pdf
manufacturer:
Stahlwille
mpn:
96521400
subcategory:
Testers
type:
Angle Testers
Data Sheet Product Description

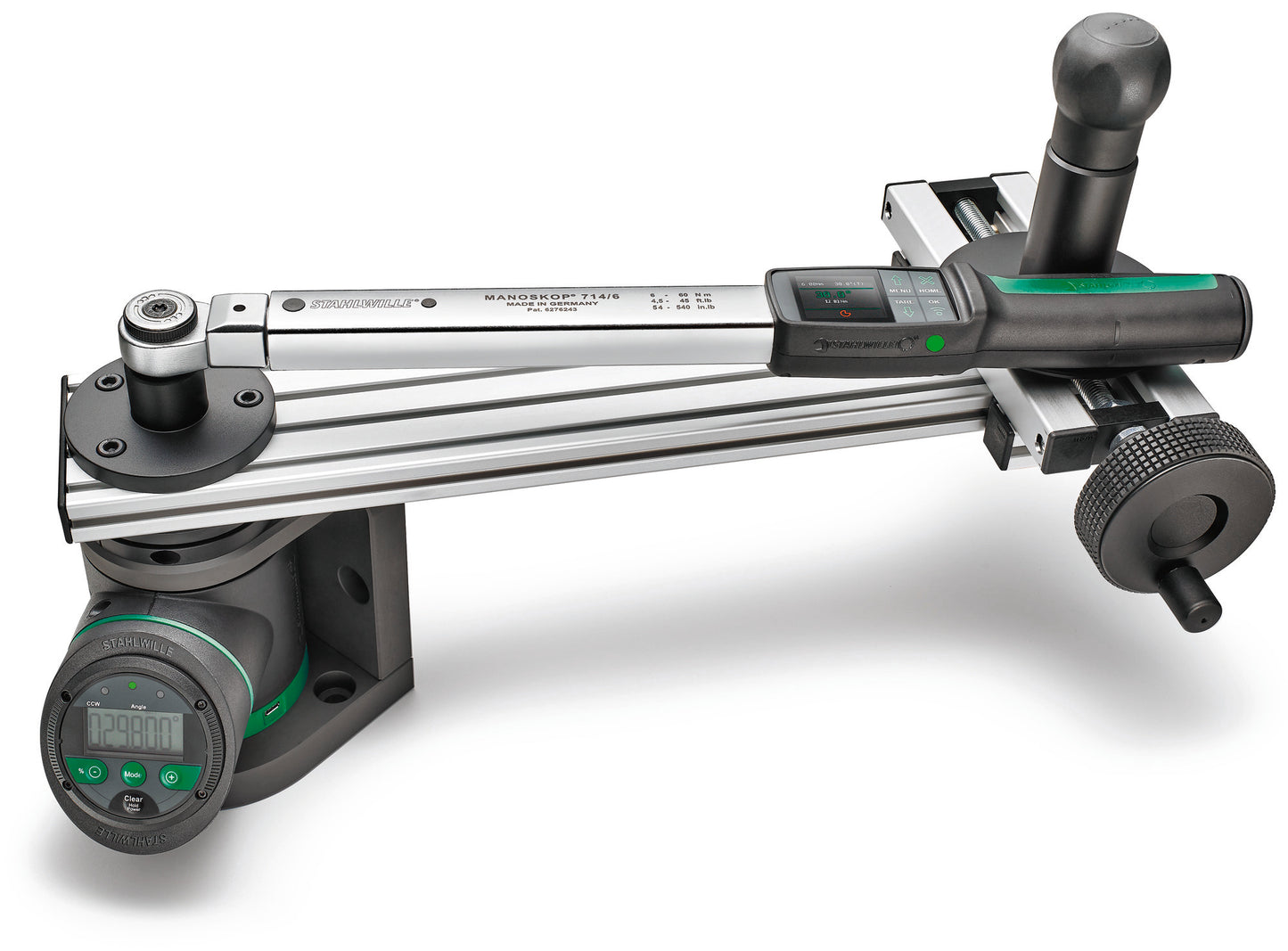

Stahlwille - 96521400
- Electronic tester for checking angle of rotation with immediate evaluation of the measurement results.
- Simple, quick and reliable testing of angle controlled torque wrenches to ensure quality in production.
- For angle of rotation measurements up to 720°. Includes an extendable rotating arm for testing in large measurement ranges.
- A simple adjustment of the supports enables quick adaptation to different handle lengths and shapes.
- The large LCD display can be rotated 180° and is easy to read from any position.
Features
Factory calibration certificate (ISO calibration)Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
Properties
- for checking the angle of rotation from angle controlled torque wrenches for compliance with the guaranteed tolerances
- angle of rotation measurements up to 720° with setpoint specifications
- immediate evaluation of the measurement results directly on the device using the traffic light principle
- with interchangeable square drive adapters for the square drive (1/4"- 3/8"-1/2")
- interchangeable supports allow angle of rotation measurements up to 400 N·m
- large LCD display for optimum readability
- the display, the display holder, and the base can be rotated 180°
- compact design
- the display and foil keyboard are spray-proof, the case is made of impact-resistant plastic
- simple installation thanks to pre-drilled holes in the mounting bracket
- the rotating arm can be easily locked in the zero position for transport
- for controlled right and left-hand torque testing
- 2 operating modes: running display of the applied torque (Track), peak value display (Peak-Hold)
- customised input of target torques and tolerances for evaluating the measured value possible
- micro USB interface for data export and for optional power supply
- data storage for up to 2500 data records, including date and time stamp
- CheckMaster documentation software for transferring values and creating test certificates is available free of charge at www.stahlwille.de
- operation possible via supplied power supply or with batteries
- with factory calibration certificate
- in a sturdy plastic case
- delivered with USB power supply, reducing adapters to 1/4" or 3/8"
