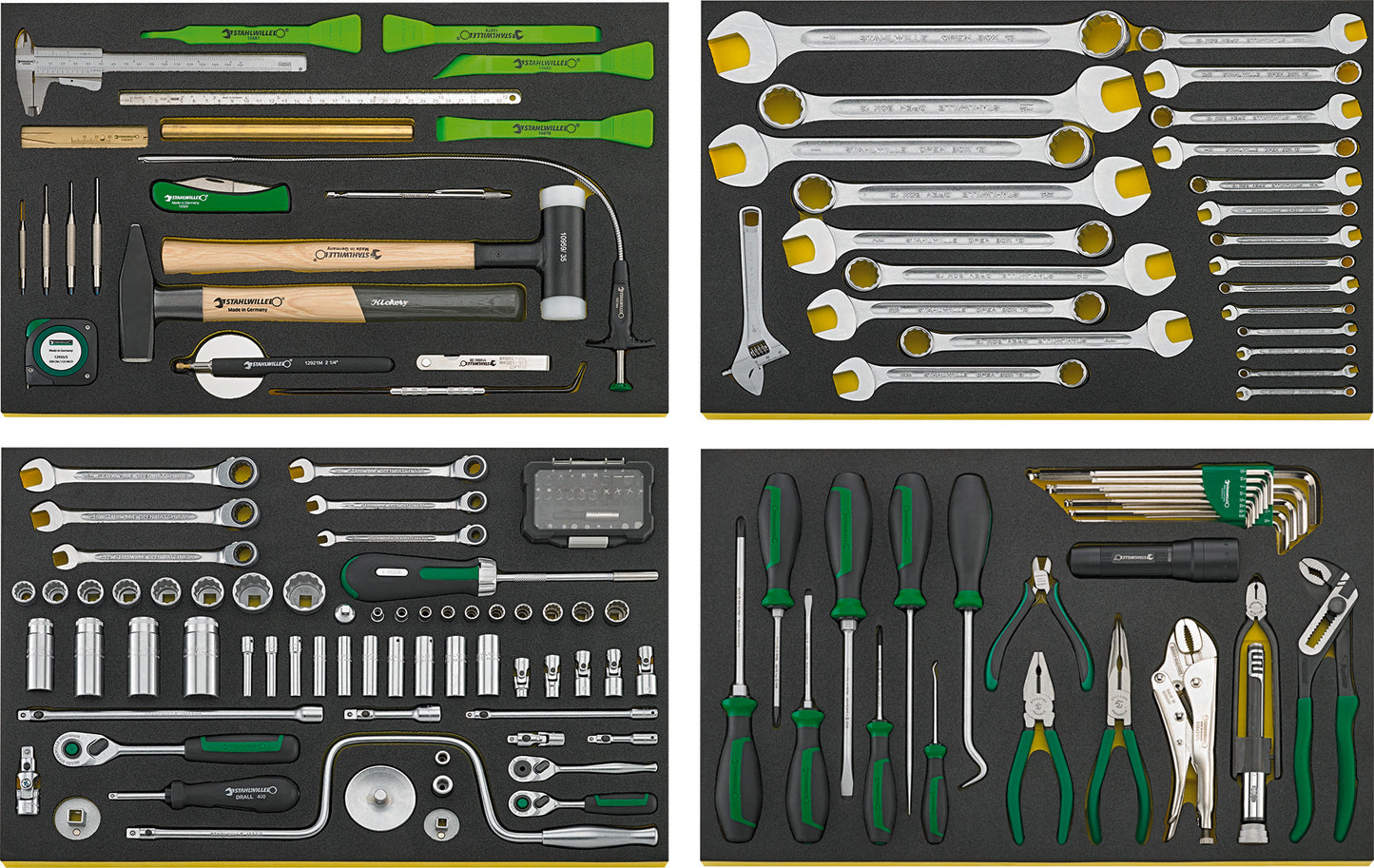

Stahlwille 97830802 13214A WW Line Maintenance Set

Product Description

Stahlwille - 97830802

• For the maintenance of aircrafts and helicopters

Features

The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.

Properties

• for maintenance on aircraft and helicopters
• 4x3/3 inserts for 4 drawers (no. TTS 98 PRO for 2 drawers)
• fits workbenches no. WB621, WB625; workshop trolleys no. TTS 93, TTS 95 PRO, TTS 98 PRO

163-piece contents:

96830885, TCS 13A/23 3/16-1 1/8

23 combination spanners No. 13a: 3/16; 13/64; 7/32; 15/64; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 25/32; 13/16; 7/8; 15/16; 1; 1 1/16; 1 1/8"

1 adjustable combination spanner No. 4025: max. 24 mm

96830886, TCS 1/4+3/8+25AN

10 sockets 1/4" No. 40aD: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"

10 sockets 1/4", long : 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"

5 articulated sockets 1/4" No. 402a: 1/4; 5/16; 3/8; 7/16; 1/2"

1 QuickRelease universal joint 1/4" No. 407QR: L.38 mm

2 QuickRelease extensions 1/4" No. 408QR: L.55 150 mm

1 Enlargement piece No. 409M: 3/8" external square 1/4" internal square

1 Plug-in handle 1/4" No. 400: L.150 mm

1 QuickRelease fine-tooth ratchet No. 415QR N: L.117 mm

1 Bit fine-tooth ratchet No. 415SGB N: L.117 mm

1 Bit holder 1/4" No. 412: L.25 mm

8 Sockets 3/8" No. 45a: 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 15/16; 1"

4 Sockets 3/8", long No. 46a: 5/8; 11/16; 3/4; 7/8"

2 QuickRelease extensions 3/8" No. 426QR: L.75 ; 240 mm

1 QuickRelease universal joint 3/8" No. 428QR: L.46 mm

1 Reducer No. 431: 1/4" external square 3/8" internal square

1 Enlargement piece No. 432M: 1/2" external square 3/8" internal square

1 QuickRelease crank 3/8" No. 453QR: L.408 mm

1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L.193 mm

1 Bit holder 3/8" No. 443: L.32 mm

1 bit ratchetNo. 4008-1

6 ratchet ring open-end spanners angled No. 17a: 1/4; 5/16; 3/8; 7/16; 1/2; 9/16"

1 bit set No. 1208: 1 quick-change holder 1/4" | L.25mm: SL4,5;6,5;8mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | Adaptor 1/4" 4KT/6KT | 30-piece

96830887, TCS LM WW ZANG/SCHDR

2 slotted screwdrivers No. 4622: 1.0 x 5.5 x 100;1.2 x 8.0 x 150 mm

3 PHILLIPS® screwdrivers No. 4632: PH1; PH2; PH3

1 Combination pliers No. 6700: L.160 mm

1 Telephone pliers No. 6731: L.200 mm

1 Grip pliers No. 6564: L.175 mm

1 Water pump pliers No. 6572: L.240 mm

1 Wire twist pliers No. 6575: L.230 mm

1 Electronic side cutter No. 6707: L. 115 mm

1 Hook tool No. 13001: 45° angled L.155 mm

1 Spline puller No. 13009

1 LED torch No. 13128: 320 lumen

1 Round awl No. 10758-2K: L.175 mm

1 Offset screwdriver set No. 10767a/13: 0.050; 1/16; 5/64; 3/32; 7/64; 1/8; 9/64; 5/32; 3/16; 7/32; 1/4; 5/16; 3/8"

96830888, TCS LM WW DIVERSES

4 pin punch No. 109: 1.4; 2.8; 3.4; 3.9 mm

1 locksmith's hammer No. 10961: 500 g

1 Soft-face hammer No. 10959: D.35 mm

1 Precision feeler gauge No. 11095/20: 0.05-1 mm

1 Plastic scraper medium blade No.10678

1 Plastic scraper narrow blade No. 10679

1 Plastic scraper angled blade No. 10680

1 Plastic scraper pointed blade No. 10681

1 Cable knife No. 12320: blade length 90 mm

1 Roller tape measure No. 12935/3: L.3 m

1 Scriber No. 12321

1 Brass mandrel No. 12495

1 Magnetic lifter No. 12601: 500 g

1 Caliper No. 12900: 150 mm/6''

1 Tyre tread gauge No. 12900/3

1 Telescopic mirror No. 12921M: D.57 mm

1 claw gripper No. 12922: D.6 mm

1 steel rulerNo. 13110: 300 mm
