UEI Test C161OIL Residential Combustion Analyzer for Gas & Oil-Fired Appliances

Product Description

UEI Test Instruments - C161OIL The C161 Residential Combustion Analyzer is easy to use and features a newly added heat exchanger test, differential temperature, rugged design, multiple sensor protections, and altitude compensation. This analyzer calculates essential information for installing and maintaining gas appliances. Prints to optional printer.

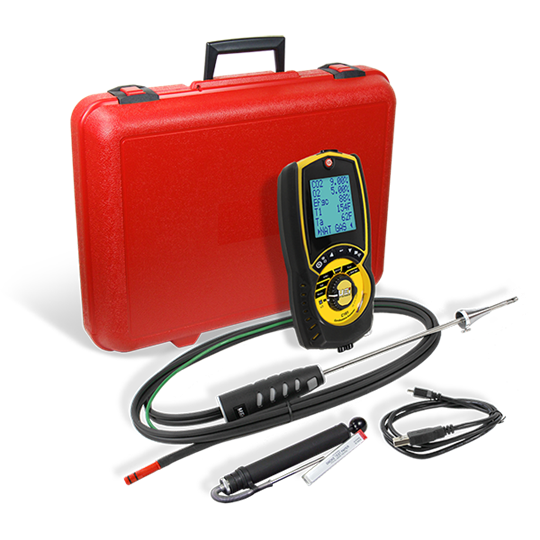

Includes: Analyzer, Smoke Pump Tester, and Carrying Case

• Up to 10-Year Warranty with Annual Recertification Yes
• Eligible for UEi Service+ Yes
• Temperature Differential Yes
• 2 Types of Sensor Protection Yes
• NOx Filtered CO Sensor Yes
• Low Flow Detection Yes
• Over Range Protection Pump Yes
• Backlight Yes
• Temperature Inputs K-Type
• Wireless Output Yes
• Protective Boot/Overmolding Yes
• Preprogrammed Fuels 8
• Start Time 30 second
• High Altitude Compensation Yes
• Memory positions 30
• Magnetic Mount Yes
• Warranty 10-Year limited
• Recording/Data Logging Yes
• K-Type Input Yes
• Digital Yes
• Number of Display Parameters 6
• IR Printer Link Yes
• Protective Water Trap Yes

• CO 2000ppm
• CO2 0.2
• O2 0.21
• Flue Temperature 32˚ to 1112˚F
• Inlet Temperature 32˚ to 1112˚F
• Heat Exchanger Test (HET) Yes
• Differential Temperature Yes
• K-Type Temperature Range -40˚ to 950˚F (-40˚ to 510˚C)
