category:
Digital Multimeters
manufacturer:
UEI Test Instruments
mpn:

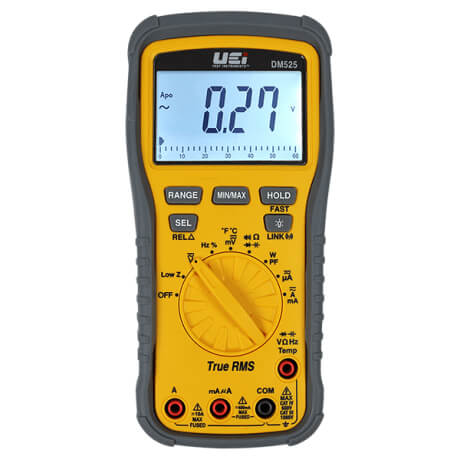

DM525
Product Description
UEI Test Instruments - DM525 Applications:
- Current measurements
- Measure electrical loads
- Motor or line current
- Measure circuit breakers
- Circuit continuity or specified resistance
- Control voltage or system board voltage checks
- Diode test malfunction/ unbroken paths
- Ambient or surface temperatures
Features:
- Wireless capability
- Free App
- Min/Max
- Hold
- 1 ms Fast response
- 6 ft drop protection
- IP42 ingress protection
- Low battery indicator
- Rubber boot w/ kick stand
- Test lead holders
- High resolution backlit display
- 24 segment bargraph
- Auto ranging
- Auto power off
- Warranty: 2-Year limited
Functions:
- TRMS: Yes
- AC Volts: 1000V
- DC Volts: 1000V
- AC current (amps): 10A
- DC current (amps): 10A
- AC micro current (amps): 6000µA
- DC micro current (amps): 6000µA
- DC micro volts: 600µV
- AC micro volts: 600µV
- Resistance (Ohms): 50.00 milliohms
- Capacitance (Farads): 9999µF
- Duty cycle: Yes
- Temperature: -328° to 2462°F
- Continuity: Yes
- Diode: Yes
- Power factor: Yes
- Low Z: Yes
