category:
A/C Refrigeration Analyzers
manufacturer:
UEI Test Instruments
mpn:
HUB4
Product Overview
Includes:
- 2 Wireless Pressure Probes (WPP1)
- 2 Temperature Pipe Clamps (WPC1)
- 4 Batteries (AA)
- Carrying case

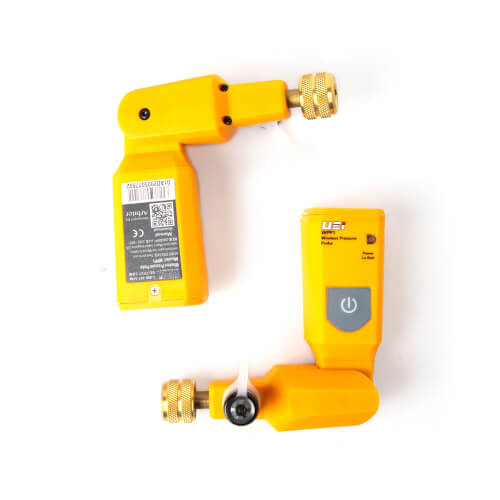

Wireless Pressure Probe
- WPP1 has a pivoting hinge to allow access to connections in tight spaces. The Pass-through fitting allows users to connect directly to the probe without additional adapters for a more efficient work flow, saving money on refrigerant and only bringing out the hoses when they're needed.
Temperature Pipe Clamp
- The WPC1 is a thermistor pipe clamp that plugs into the Pressure probe to send its data to the App. The narrow jaw allows users to get onto narrow pipe lengths, while the over-molded texture provides a secure grip. The unique spring design allows for easier opening and closing without compromising it's grasp of the pipe. The WPC1 is compliant to California's Title 24 standard.
Solid Connection
- Setting up probes in the App is quick and easy. Once a probe is assigned to a part of the system, it will automatically reassign that probe each time the App is launched. The latest wireless technology allows up to 150 ft. connectivity range pending environmental conditions and if the connection drops, the probe will automatically reconnect to the App.
UEi HUB App
- The UEi HUB App shows a system’s Liquid and Suction measurements and calculations in an intuitive easy-to-read display. Users can easily select from over 44 refrigerants as well as add or subtract favorites. The user-friendly navigation bar allows users to quickly change units, reassign probes or get support from the manual and web support.
Features:
- In App system refrigerant charging calculations.
- 2 Wireless Pressure Probes (WPP1)
- Pass through refrigerant ports for easily adding or recovering refrigerant from the system without disconnecting probes.
- 180° rotation for easy use in tight spaces.
- Range 0 to 725 psig, Resolution 0.1 psi.
- Accuracy 0.5%FS, total 1%FS for 32° to 158°F (0° to 70°C).
- 2 Temperature Pipe Clamps (WPC1)
- High accuracy thermistor drifts less than thermocouples and doesn’t require field calibration.
- Range 32°F to 176°F (0°C to 80°C), Resolution 0.1°F
- Response time < 30 sec.
- Wireless distance of 150ft (50m) pending environment
- Requires FREE App “UEI HUB”.
- iOS and Android compatible App
