country_of_origin:
TW
manufacturer:
US Motors
mpn:
1187
Product Description

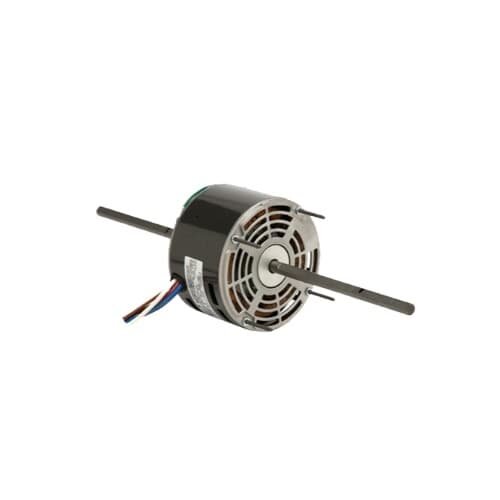

US Motors - 1187
Features- Permanent Split Capacitor
- Double Shaft Direct Drive Blower
- 5.6" Dia. Open Dripproof (ODP)
- Multi-Speed
- Stud or Hub Mount
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:TEAO
HORSEPOWER:.125
KILOWATTS:0.1
POLES:6
NUMBER SPEEDS:3
RPM:1075
HERTZ:60
VOLTS PRIMARY:208-230 V
VOLTS :208
VOLTS 2:230
FRME :48
SHAFT CODE:YZ
STATOR DIAMETER:5.5
STACK:1
MOUNTING:STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:SELF-ALIGN
SHAFT END BEARING:SELF-ALIGN
AMBIENT:40
ROTATION:CCW LEAD END
SERVICE FACTOR:1
RUNCAPMFD:5
RUNCAPVOLTS:370
SHIPPING WEIGHT:11
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:16.87
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:4.88
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:A
LOCKED ROTOR AMPS:1.86
NEMA NOMINAL EFFICIENCY:65.5
FULL LOAD AMPS PRIMARY:0.9
SERVICE FACTOR AMPS PRIMARY:1.0-0.9
