country_of_origin:
TW
manufacturer:
US Motors
mpn:
1243
Product Description

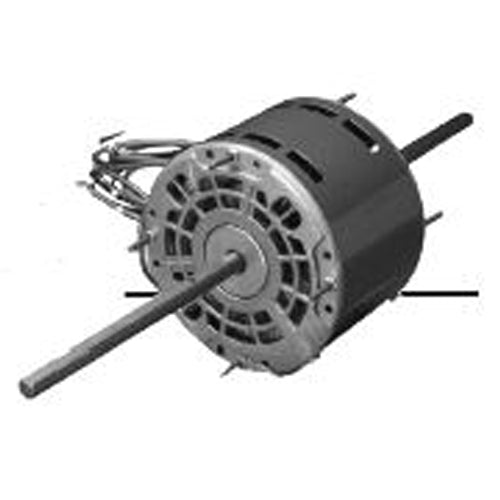

US Motors - 1243
Features- Permanent Split Capacitor
- Double Shaft Direct Drive Blower
- 5.6" Dia. Open Dripproof (ODP)
- Multi-Speed Capacitor Included
- Resilient Base
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:DPAO
HORSEPOWER:.25
KILOWATTS:0.2
POLES:4
NUMBER SPEEDS:2
RPM:1625
HERTZ:60
VOLTS PRIMARY:230 V
VOLTS :230
FRME :48
SHAFT CODE:YZ
STATOR DIAMETER:5.5
STACK:1.25
MOUNTING:CRADLE
MOTOR TYPE:FHP
OPPOSITE END BEARING:SELF-ALIGN
SHAFT END BEARING:SELF-ALIGN
AMBIENT:40
ROTATION:CCW LEAD END
SERVICE FACTOR:1
RUNCAPMFD:3
RUNCAPVOLTS:370
SHIPPING WEIGHT:13
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:16.8
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:5.164
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:A
LOCKED ROTOR AMPS:3.01
NEMA NOMINAL EFFICIENCY:57.5
FULL LOAD AMPS PRIMARY:1.8
SERVICE FACTOR AMPS PRIMARY:1.8
