availability:
In stock
enclosure:
,
horsepower:
0.25
mpn:
1312
phase:
1
rpm:
1400-1800
voltage:
575

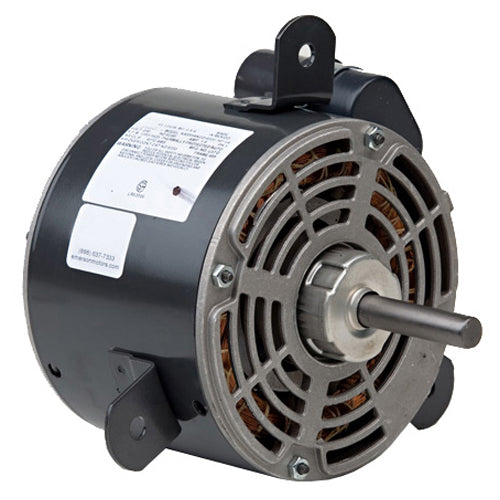

Product Description
- Permanent Split Capacitor
- Refrigeration Condenser Fan
- Open & Totally Enclosed Air Over
- Horizontal Stud or Bracket Mount
- Capacitor Included
Specifications
| Model_Number | K055PLG5180013B |
|---|---|
| PRODUCT NAME | .25 HP - , - 1625 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | , |
| HORSEPOWER | .25 |
| KILOWATTS | 0.2 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1625 |
| HERTZ | 50 |
| HERTZ 2 | 60 |
| VOLTS PRIMARY | 575 V |
| VOLTS | 575 |
| STATOR DIAMETER | 5.5 |
| STACK | 1.5 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | SAB OR SLV |
| SHAFT END BEARING | SAB OR SLV |
| ROTATION | CW LEAD END |
| RUNCAPMFD | 5 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 13 |
| BREAKDOWN TORQUE | 22.5 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 7.101 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 1.49 |
