- Capacitor Start Capacitor Run
- Belted Fan & Blower
- Open Dripproof (ODP)
- Resilient Base
- Single Speed
Specifications
| Model_Number | C063SCL3818972B |
|---|---|

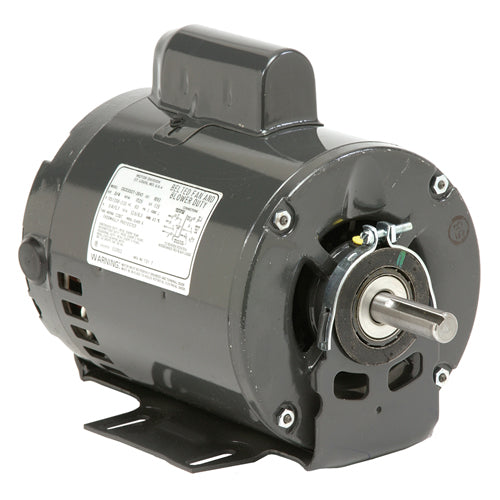

| PRODUCT NAME | 1 HP - ODP - 1725 |
| PHASETYPE | 1_CAPACITOR START |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 1 |
| KILOWATTS | 0.8 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/208-230 V |
| VOLTS | 115 |
| VOLTS 2 | 208 |
| VOLTS 3 | 230 |
| FRME | 56 |
| STATOR DIAMETER | 6.3 |
| STACK | 2.75 |
| MOUNTING | RESILIENT |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | SLEEVE |
| SHAFT END BEARING | SLEEVE |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.2 |
| STARTCAPMFD | 340.2 |
| SHIPPING WEIGHT | 30 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 134.3 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 113.7 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | A |
| LOCKED ROTOR AMPS | 55.38 |
| FULL LOAD AMPS PRIMARY | 14.0/7.0 |
Technical Data
AvailabilityIn stock
EnclosureODP
Frame56
Horsepower1
Mpn1769
Phase1
Rpm1400-1800
Voltage100-120, 200-240
