country_of_origin:
TW
manufacturer:
US Motors
mpn:
1834
Product Description

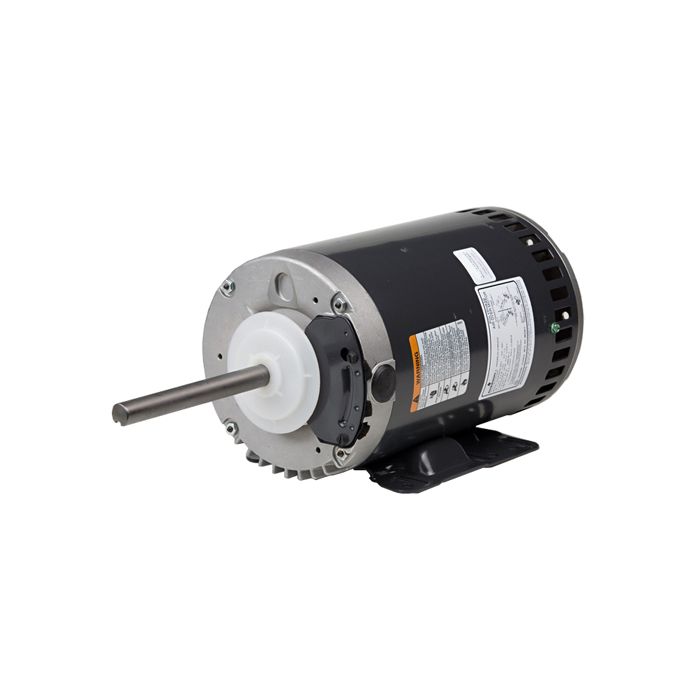

US Motors - 1834
Features- Industrial Air Circulator
- Single Phase
- Yoke Mount Welded Tab
- Split Phase
Additional Information
PHASETYPE:1_SPLIT PHASE
MOTOR ENCLOSURE:TEAO
HORSEPOWER:.5
KILOWATTS:0.4
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115 V
VOLTS :115
FRME :48
SHAFT CODE:YZ
STATOR DIAMETER:5.5
STACK:3
MOUNTING:YOKE
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1
SHIPPING WEIGHT:22
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:48.27
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:26.93
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:L
LOCKED ROTOR AMPS:35.67
NEMA NOMINAL EFFICIENCY:66.8
FULL LOAD AMPS PRIMARY:6.6
SERVICE FACTOR AMPS PRIMARY:6.6
