country_of_origin:
TW
manufacturer:
US Motors
mpn:
1850
Product Description

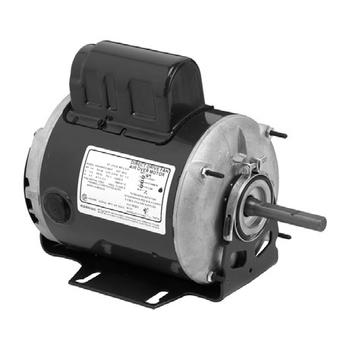

US Motors - 1850
Features- Direct Drive Blower
- Permanent Split Capacitor
- Totally Enclosed Air Over (TEAO)
- Resilient/Stud Mount
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:TEAO
HORSEPOWER:.5
KILOWATTS:0.4
POLES:4
NUMBER SPEEDS:1
RPM:1700
HERTZ:60
VOLTS PRIMARY:115/230 V
VOLTS :115
VOLTS 2:230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:2.75
MOUNTING:CRADLE/STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1
RUNCAPMFD:20
RUNCAPVOLTS:370
SHIPPING WEIGHT:23
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:55.58
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:8.573
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:H
LOCKED ROTOR AMPS:20.89
NEMA NOMINAL EFFICIENCY:70
FULL LOAD AMPS PRIMARY:5.0/2.5
SERVICE FACTOR AMPS PRIMARY:5.0/2.5
