country_of_origin:
TW
manufacturer:
US Motors
mpn:
2203

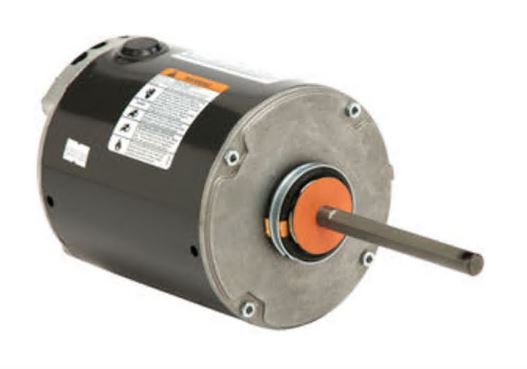

Product Description
Features- Permanent Split Capacitor
- Commercial Condenser Fan
- 6.3" Dia. Open Dripproof Air Over
- All Angle Mounting
- Hub or Stud Mount
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:ENCLOSED
HORSEPOWER:1
KILOWATTS:0.8
POLES:6
NUMBER SPEEDS:1
RPM:1075
HERTZ:60
VOLTS PRIMARY:208-230/460 V
VOLTS :208
VOLTS 2:230
VOLTS 3:460
FRME :56
SHAFT CODE:Z
STATOR DIAMETER:6.3
STACK:3.47
MOUNTING:HUB/STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:60
ROTATION:CW DRIVE END REV
SERVICE FACTOR:1
RUNCAPMFD:17.5
RUNCAPVOLTS:370
SHIPPING WEIGHT:32
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:141.1
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:22.04
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:C
LOCKED ROTOR AMPS:15.2
FULL LOAD AMPS PRIMARY:5.5-5.1/2.6
SERVICE FACTOR AMPS PRIMARY:5.5-5.1/2.6
