availability:
In stock
enclosure:
TEAO
horsepower:
1
mpn:
2243
rpm:
950-1200
voltage:
200-240
Product Description

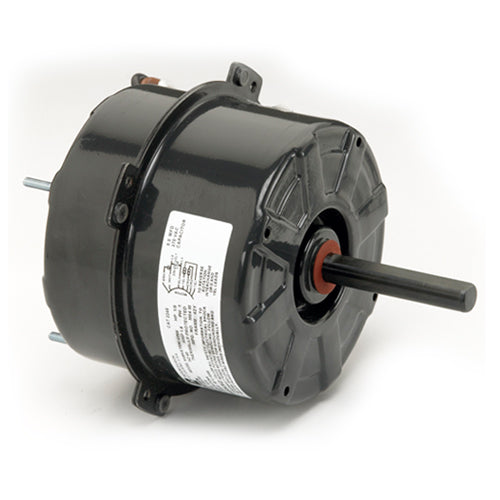

- Permanent Split Capacitor Condenser Fan
- 5.0" Diameter Totally Enclosed Air Over (TEAO)
- Clam Shell Single Speed Stud Mount
- Without Capacitor
Specifications
| MODEL NUMBER | K048FKS1203C12B |
|---|---|
| CATALOG NUMBER | 2243 |
| PHASE TYPE | 1_PHASE |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | 1/10 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1075RPM |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| FRAME | 42 |
| MOUNTING | STUD |
| MOTOR TYPE | FHP |
| AMBIENT | 60 |
| ROTATION | CCWLE REV |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 5 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 10 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| INSULATION CLASS | B |
| FULL LOAD AMPS PRIMARY | 0.75 |
