country_of_origin:
TW
manufacturer:
US Motors
mpn:
2387
Product Description

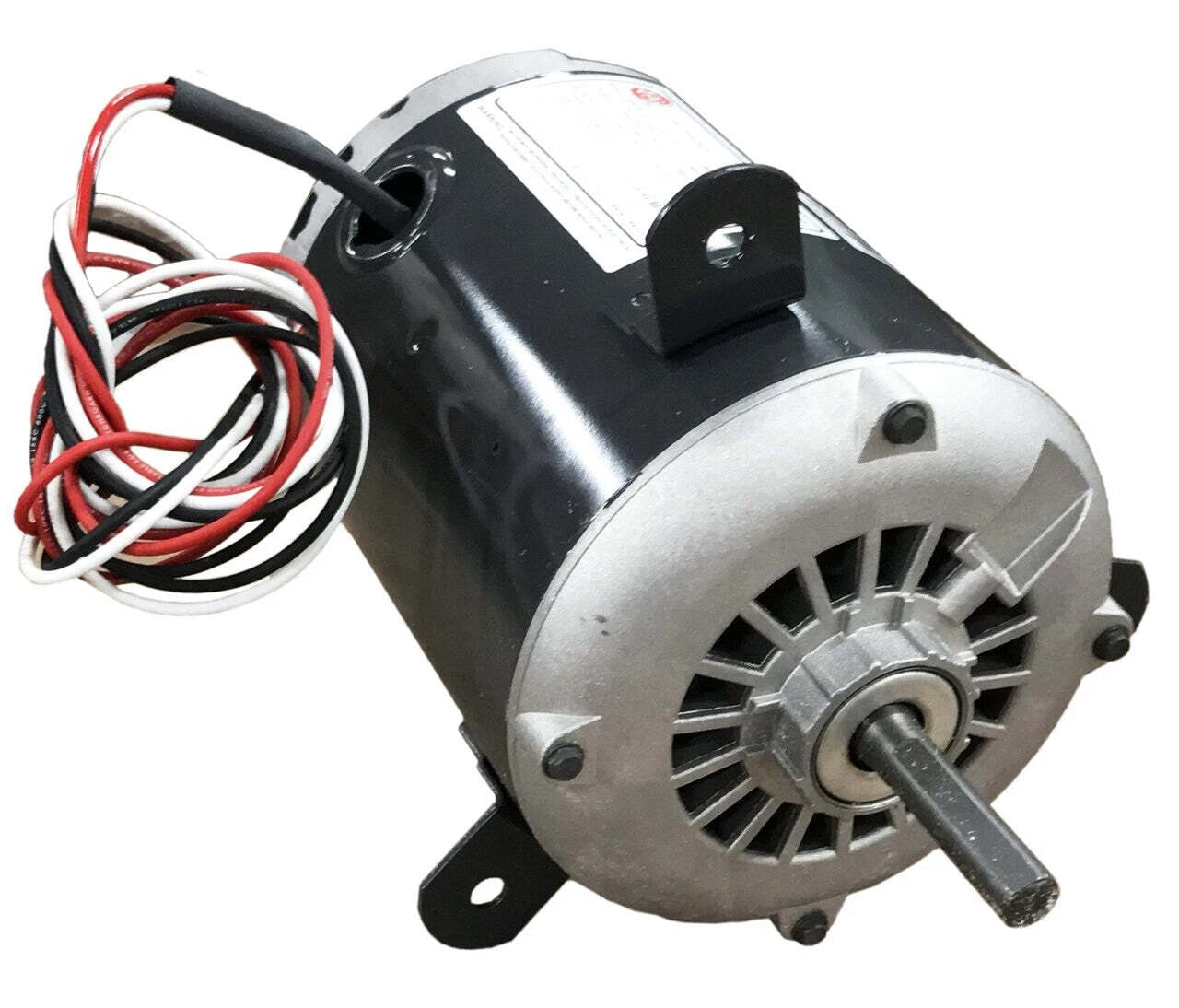

US Motors - 2387
Features- Three Phase
- Commercial Condenser Fan
- Open Enclosure
- Flex Mount
- OEM Replacement for Tecumseh
Additional Information
PHASETYPE:3_POLYPHASE
MOTOR ENCLOSURE:OAO
HORSEPOWER:.33
KILOWATTS:0.3
POLES:4
NUMBER SPEEDS:1
RPM:1400
RPM 2:1600
HERTZ:50
HERTZ 2:60
VOLTS PRIMARY:380 460 V
VOLTS :380
VOLTS 2:460
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:1.75
MOUNTING:BRACKET
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:REVERSIBLE
SERVICE FACTOR:1
SHIPPING WEIGHT:17
THERMAL PROTECTION:THERMALLY
BREAKDOWN TORQUE:192.8
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:173.7
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:E
LOCKED ROTOR AMPS:10.94
FULL LOAD AMPS PRIMARY:1.0
SERVICE FACTOR AMPS PRIMARY:1.0
