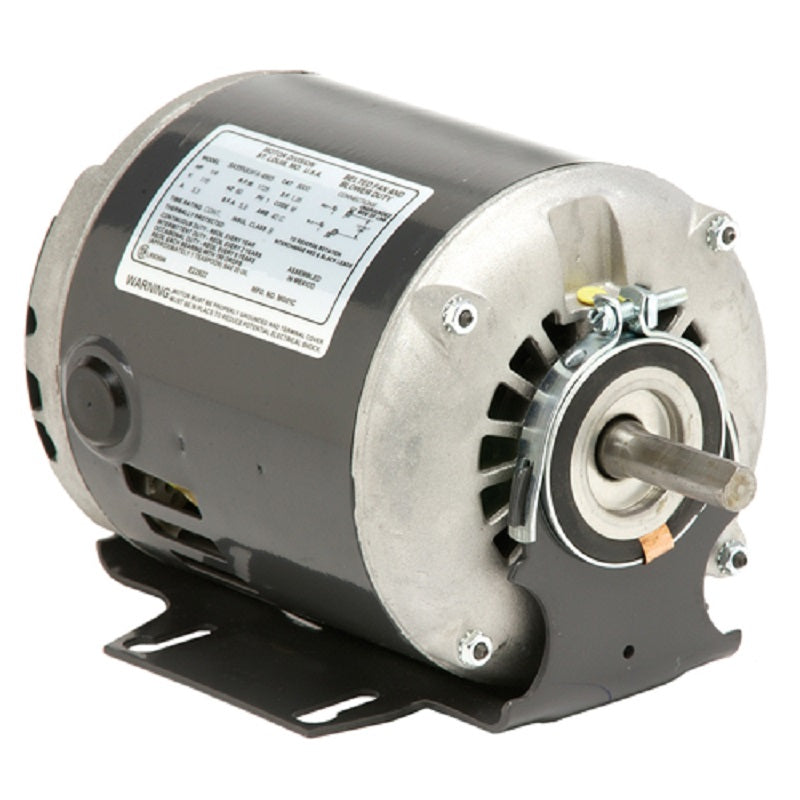

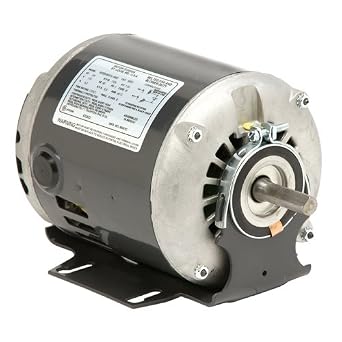

US Motors 3624 Heating and Air-Conditioning Motors

US Motors 3624 Heating and Air-Conditioning Motors

Back Order

Get it by Wed, May 14 - Mon, May 19

SKU kpi013-3624

0
(0 rating)
$181.70 USD
$181.70 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
country_of_origin: TW
manufacturer: US Motors
mpn: 3624

Product Description

US Motors - 3624

Features
  • Belted Fan Blower
  • Open Dripproof
  • Single Speed 48/56 Frame

Additional Information

PHASETYPE:1_SPLIT PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:.5
KILOWATTS:0.4
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115 V
VOLTS :115
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:2.25
MOUNTING:CRADLE
MOTOR TYPE:FHP
OPPOSITE END BEARING:SLEEVE
SHAFT END BEARING:SLEEVE
AMBIENT:40
ROTATION:CW/CCW
SERVICE FACTOR:1.25
SHIPPING WEIGHT:19
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:59.13
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:36.64
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:N
LOCKED ROTOR AMPS:44.9
NEMA NOMINAL EFFICIENCY:64.5
FULL LOAD AMPS PRIMARY:7.4
SERVICE FACTOR AMPS PRIMARY:8.4
