country_of_origin:
TW
manufacturer:
US Motors
mpn:
4740
Product Description

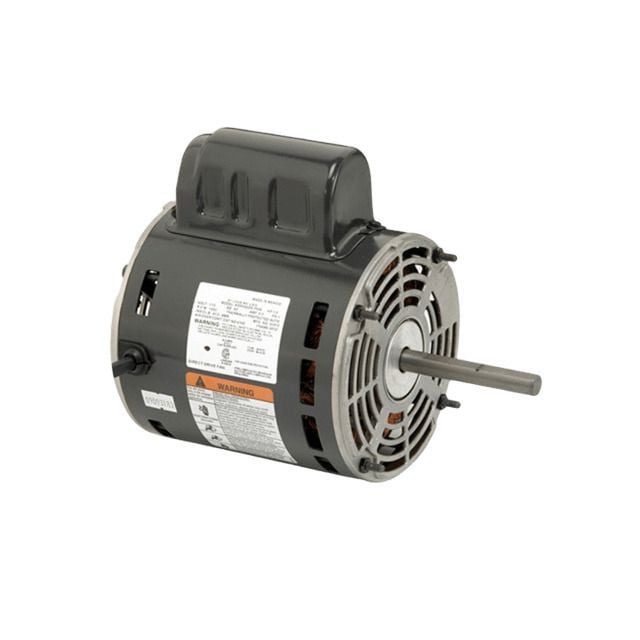

US Motors - 4740
Features- Permanent Split Capacitor
- Centrifugal Ventilation Direct Drive Blower
- Open Air Over (OAO)
- 5.0" and 5.6" Diameter
- Stud Mount
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:OPEN
HORSEPOWER:.083
KILOWATTS:0.1
POLES:8
NUMBER SPEEDS:1
RPM:850
HERTZ:60
VOLTS PRIMARY:115 V
VOLTS :115
FRME :48
SHAFT CODE:YZ
STATOR DIAMETER:5.5
STACK:0.875
MOUNTING:STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CW LEAD END
SERVICE FACTOR:1
RUNCAPMFD:7.5
RUNCAPVOLTS:370
SHIPPING WEIGHT:10
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:16.46
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:3.517
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:E
LOCKED ROTOR AMPS:3.64
NEMA NOMINAL EFFICIENCY:48
FULL LOAD AMPS PRIMARY:1.7
SERVICE FACTOR AMPS PRIMARY:1.7
