country_of_origin:
TW
manufacturer:
US Motors
mpn:
4750
Product Description

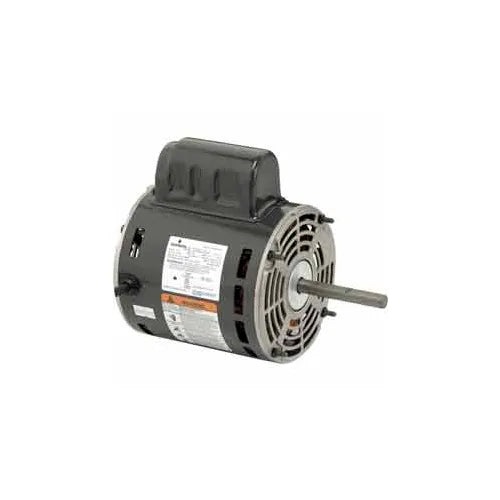

US Motors - 4750
Features- Permanent Split Capacitor
- Centrifugal Ventilation Direct Drive Blower
- Open Air Over (OAO)
- 5.0" and 5.6" Diameter
- Stud Mount
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:OPEN
HORSEPOWER:.75
KILOWATTS:0.6
POLES:6
NUMBER SPEEDS:1
RPM:1100
HERTZ:60
VOLTS PRIMARY:115/230 V
VOLTS :115
VOLTS 2:230
FRME :48
SHAFT CODE:YZ
STATOR DIAMETER:5.5
STACK:3
MOUNTING:STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CW LEAD END
SERVICE FACTOR:1
RUNCAPMFD:17.5
RUNCAPVOLTS:370
SHIPPING WEIGHT:18
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:74.25
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:11.37
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:A
LOCKED ROTOR AMPS:17.49
NEMA NOMINAL EFFICIENCY:68
FULL LOAD AMPS PRIMARY:10.0/5.0
SERVICE FACTOR AMPS PRIMARY:10.0/5.0
