country_of_origin:
MX
manufacturer:
US Motors
mpn:
5149
Product Description

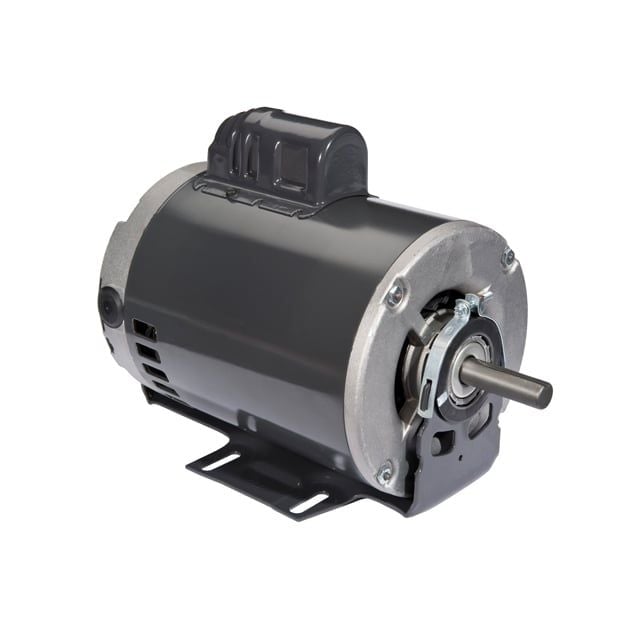

US Motors - 5149
Features- Capacitor Start Capacitor Run
- Evaporative Cooler
- 6.3" Dia. Open Dripproof (ODP)
- Resilient Mount
- Reversible Rotation
Additional Information
PHASETYPE:1_CAPACITOR START
MOTOR ENCLOSURE:OPDP
HORSEPOWER:1
KILOWATTS:0.8
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115/230 V
VOLTS :115
VOLTS 2:230
FRME :56
STATOR DIAMETER:6.3
STACK:2.75
MOUNTING:CRADLE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1.25
STARTCAPMFD:567
SHIPPING WEIGHT:23
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:149.7
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:199.7
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:L
LOCKED ROTOR AMPS:72.1
NEMA NOMINAL EFFICIENCY:69
FULL LOAD AMPS PRIMARY:15.1/7.5
SERVICE FACTOR AMPS PRIMARY:15.6/7.9
