availability:
In stock
enclosure:
TEFC
frame:
56
horsepower:
0.167
mpn:
6182
phase:
1
rpm:
950-1200
voltage:
100-120, 200-240
Product Description
- General Purpose
- Single Phase Capacitor Start
- Totally Enclosed Fan Cooled (TEFC)
- C Face Footless
Specifications
| Model_Number | C055JDC4393025B |
|---|---|

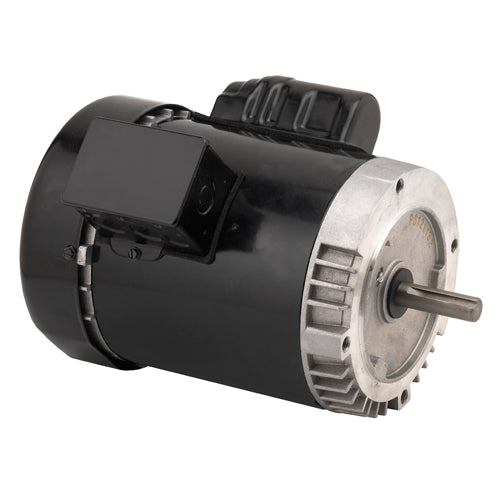

| PRODUCT NAME | .167 HP - TEFC - 1140 |
| PHASETYPE | 1_CAPACITOR START |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | .167 |
| KILOWATTS | 0.1 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1140 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/208-230 V |
| VOLTS | 115 |
| VOLTS 2 | 208 |
| VOLTS 3 | 230 |
| FRME | 56 |
| SHAFT CODE | C |
| STACK | 2.25 |
| MOUNTING | C-FACE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 40 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | 198.45 |
| SHIPPING WEIGHT | 17 |
| THERMAL PROTECTION | NONE |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | L |
| NEMA NOMINAL EFFICIENCY | 52.6 |
| FULL LOAD AMPS PRIMARY | 4.1/2.0-2.1 |
| SERVICE FACTOR AMPS PRIMARY | 4.5/2.2-2.2 |
