country_of_origin:
TW
manufacturer:
US Motors
mpn:
7073
Product Description

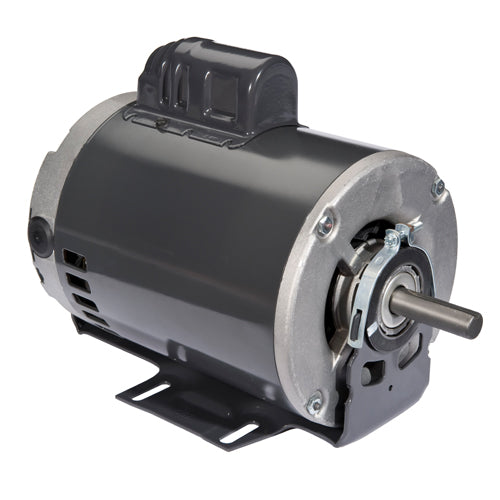

US Motors - 7073
Features- Capacitor Start Capacitor Run
- Evaporative Cooler
- 6.3" Dia. Open Dripproof (ODP)
- Resilient Mount
- Reversible Rotation
Additional Information
PHASETYPE:1_CAPACITOR START -
MOTOR ENCLOSURE:ODP
HORSEPOWER:2
KILOWATTS:1.5
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115/230 V
VOLTS :115
VOLTS 2:230
FRME :56
SHAFT CODE:Z
STATOR DIAMETER:6.3
STACK:4.25
MOUNTING:RESILIENT
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1
RUNCAPMFD:25
RUNCAPVOLTS:370
STARTCAPMFD:92.4
SHIPPING WEIGHT:46
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:244.8
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:75.58
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:G
LOCKED ROTOR AMPS:92.04
FULL LOAD AMPS PRIMARY:19.0/8.5
SERVICE FACTOR AMPS PRIMARY:19.0/8.5
