availability:
In stock
frame:
56
horsepower:
2
mpn:
7914P
phase:
3
rpm:
1400-1800
voltage:
200-240, 440-480

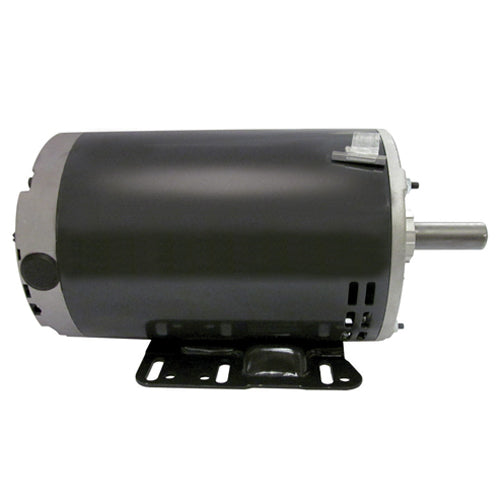

Product Description
- Three Phase
- Commercial Belted Fan & Blower
- Open Dripproof (ODP)
- Air Over Not Required for ODP
- Rigid Base
Specifications
| Model_Number | P063AGZ1312015B |
|---|---|
| PRODUCT NAME | 2 HP - - 1725 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | 2 |
| KILOWATTS | 1.5 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 200-230/460 |
| VOLTS | 200 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | HZ |
| STATOR DIAMETER | 6.3 |
| STACK | 3 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 37 |
| BREAKDOWN TORQUE | 378.7 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 254.4 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | J |
| LOCKED ROTOR AMPS | 41.76 |
| NEMA NOMINAL EFFICIENCY | 86.5 |
| FULL LOAD AMPS PRIMARY | 7.6-7.8/3.9 |
| SERVICE FACTOR AMPS PRIMARY | 7.8-8.0/4.0 |
