availability:
In stock
frame:
48
horsepower:
0.25
mpn:
8000
phase:
1
rpm:
1400-1800
voltage:
100-120

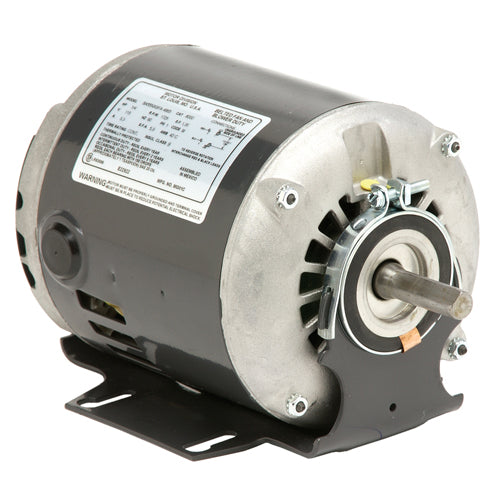

Product Description
- Split Phase
- Belted Fan & Blower
- Open Dripproof (ODP)
- Resilient Base
- Single Speed
Specifications
| Model_Number | SA55SFA4865722B |
|---|---|
| PRODUCT NAME | .25 HP - - 1725 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | .25 |
| KILOWATTS | 0.2 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115 |
| VOLTS | 115 |
| FRME | 48 |
| STATOR DIAMETER | 5.5 |
| STACK | 1.25 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1.35 |
| SHIPPING WEIGHT | 12 |
| BREAKDOWN TORQUE | 31.49 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 13.37 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | M |
| LOCKED ROTOR AMPS | 22.61 |
| FULL LOAD AMPS PRIMARY | 5.3 |
| SERVICE FACTOR AMPS PRIMARY | 5.9 |
