availability:
In stock
enclosure:
ODP
frame:
48
horsepower:
0.33
mpn:
8667
phase:
1
rpm:
0-900
voltage:
200-240

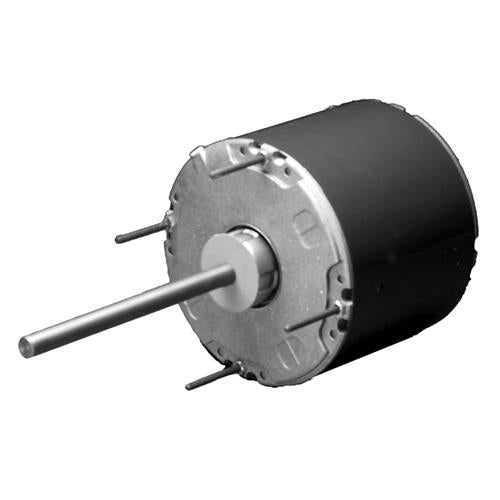

Product Description
- Permanent Split Capacitor
- Condenser Fan
- 5.6" Dia. Open Air Over
- 60C Ambient Design
- Shaft Up
Specifications
| Model_Number | KA55SGC8667802B |
|---|---|
| PRODUCT NAME | .33 HP - ODP - 825 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | .33 |
| KILOWATTS | 0.3 |
| POLES | 8 |
| NUMBER SPEEDS | 1 |
| RPM | 825 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230 V |
| VOLTS | 230 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 2.25 |
| MOUNTING | STUD |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | SELF-ALIGN |
| SHAFT END BEARING | SELF-ALIGN |
| AMBIENT | 40 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 7.5 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 17 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 50.01 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 9.584 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 4.18 |
| FULL LOAD AMPS PRIMARY | 2.0 |
