country_of_origin:
TW
manufacturer:

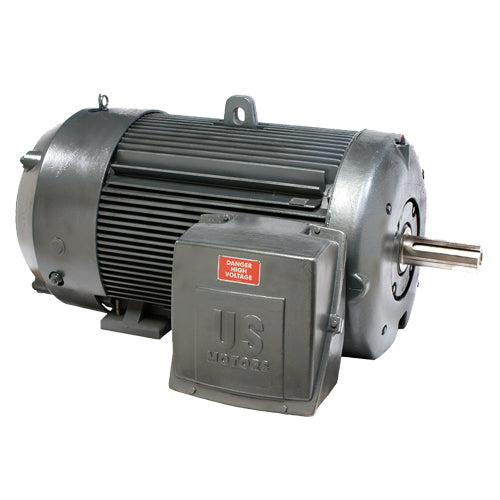

US Motors
mpn:
C300P1WS
Features
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- CORRO-DUTY®
- TITAN® Medium Voltage Motors
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:300
KILOWATTS:223.7
POLES:2
NUMBER SPEEDS:1
RPM:3570
RPM 2:3570
HERTZ:60
VOLTS PRIMARY:2300/4000
VOLTS :4000
VOLTS 2:2300
FRME :5010
SHAFT CODE:S
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:JCE
OPPOSITE END BEARING:6315-J/C3
SHAFT END BEARING:6315-J/C3
AMBIENT:40
ROTATION:UNI-DIRECTIONAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:4800
BREAKDOWN TORQUE:293
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:85
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:F
LOCKED ROTOR AMPS:246.3
NEMA NOMINAL EFFICIENCY:95
FULL LOAD AMPS PRIMARY:66/38
SERVICE FACTOR AMPS PRIMARY:76/44
