country_of_origin:
TW
manufacturer:
US Motors
mpn:
CNT50P1FG

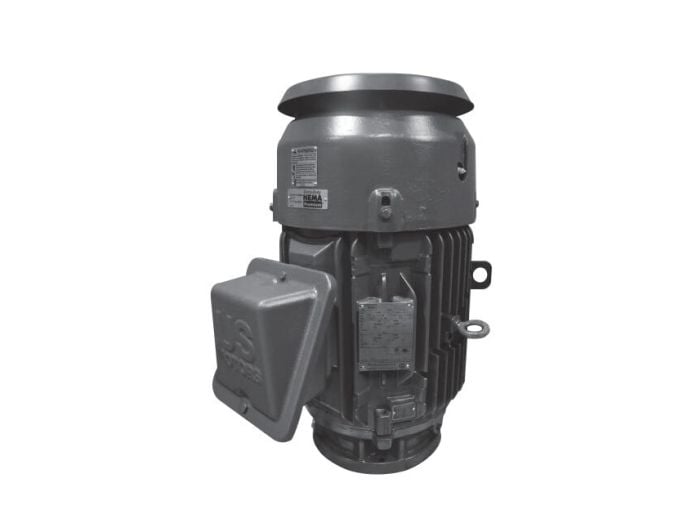

Product Description
Features- Vertical Motors
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- Solid Shaft Normal Thrust
- Corro-Duty Premium Efficient
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:50
KILOWATTS:37.3
POLES:2
NUMBER SPEEDS:1
RPM:3550
RPM 4:2930
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:460
VOLTS :460
VOLTS 4:380
FRME :326
SHAFT CODE:HP
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:TVCS
OPPOSITE END BEARING:6311-J/C3
SHAFT END BEARING:6312-J/C3
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:750
BREAKDOWN TORQUE:284
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:197
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:365
NEMA NOMINAL EFFICIENCY:93
FULL LOAD AMPS PRIMARY:56
SERVICE FACTOR AMPS PRIMARY:65
