- Cooling Tower
- Totally Enclosed Fan Cooled (TEFC)
- Premium Efficient Inverter Duty
- 10:1 (6-60 Hz) Speed Range Variable Torque
Specifications
| Model_Number | GM41 |
|---|---|

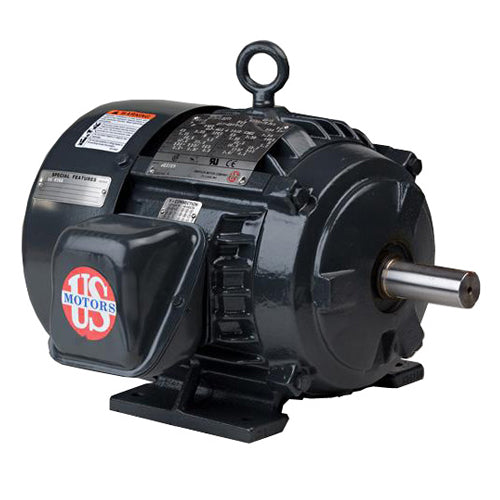

| PRODUCT NAME | 7.5 HP - TEFC-IP55 - 1770 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC-IP55 |
| HORSEPOWER | 7.5 |
| KILOWATTS | 5.6 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1770 |
| HERTZ | 60 |
| VOLTS PRIMARY | 200 |
| VOLTS | 200 |
| FRME | 213 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F2 |
| MOTOR TYPE | TCI |
| OPPOSITE END BEARING | 6206-2RS-J/C3 |
| SHAFT END BEARING | 6208-2RS-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 170 |
| BREAKDOWN TORQUE | 259 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 207 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | H |
| LOCKED ROTOR AMPS | 141 |
| NEMA NOMINAL EFFICIENCY | 91.7 |
| FULL LOAD AMPS PRIMARY | 22 |
| SERVICE FACTOR AMPS PRIMARY | 24.9 |
Technical Data
AvailabilityIn stock
EnclosureTEFC-IP55
Frame213
Horsepower7.5
MpnCW7V2H2
Phase3
Rpm1400-1800
Voltage200-240
