country_of_origin:
TW
manufacturer:
US Motors
mpn:
D13B2N4A
Product Description

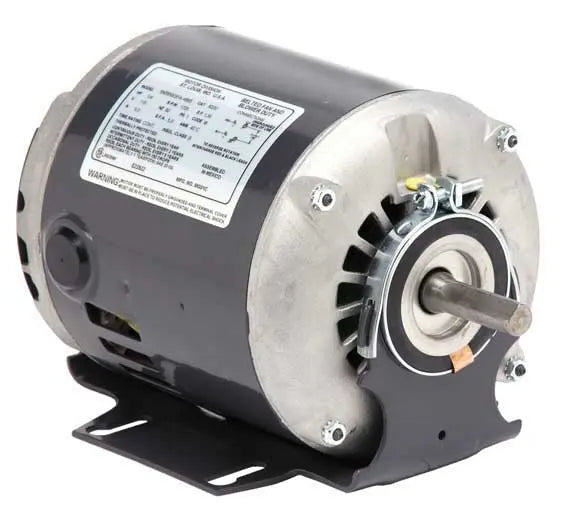

US Motors - D13B2N4A
Features- Split Phase
- General Purpose
- Open Dripproof (ODP)
- Single Phase
- Rigid Base
Additional Information
PHASETYPE:1_SPLIT PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:.33
KILOWATTS:0.3
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115 V
VOLTS :115
FRME :48
STATOR DIAMETER:5.5
STACK:1.5
MOUNTING:RIGID
MOTOR TYPE:FHP
OPPOSITE END BEARING:SLEEVE
SHAFT END BEARING:SLEEVE
AMBIENT:40
ROTATION:CCW SWITCH END REV
SERVICE FACTOR:1
SHIPPING WEIGHT:16
THERMAL PROTECTION:NONE
BREAKDOWN TORQUE:46.19
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:36.26
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:R
LOCKED ROTOR AMPS:44.01
NEMA NOMINAL EFFICIENCY:56
FULL LOAD AMPS PRIMARY:6.8
SERVICE FACTOR AMPS PRIMARY:6.8
