availability:
In stock
frame:
56
horsepower:
1
mpn:
D1CPA1PCR
phase:
1
rpm:
2800-3600
voltage:
100-120, 200-240

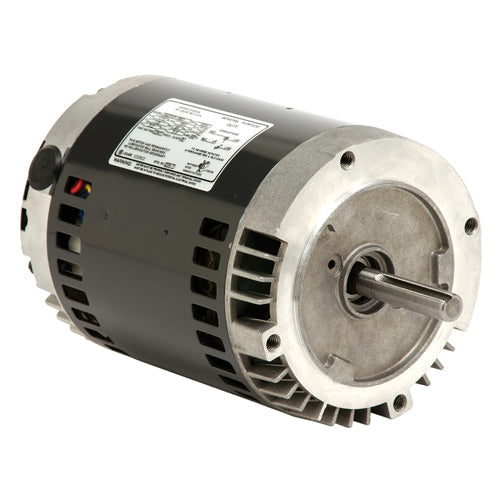

Product Description
- General Purpose
- Single Phase
- Open Dripproof (ODP)
- Capacitor Start
- C Face Footless
Specifications
| Model_Number | T063CSG2214012B |
|---|---|
| PRODUCT NAME | 1 HP - - 3450 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | 1 |
| KILOWATTS | 0.8 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/230 |
| VOLTS | 115 |
| VOLTS 2 | 230 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 2.25 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | CW/CCW |
| SERVICE FACTOR | 1.25 |
| RUNCAPMFD | 35 |
| RUNCAPVOLTS | 370 |
| STARTCAPMFD | 356.5 |
| SHIPPING WEIGHT | 29 |
| BREAKDOWN TORQUE | 62.53 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 74.25 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | H |
| LOCKED ROTOR AMPS | 53.08 |
| NEMA NOMINAL EFFICIENCY | 80.4 |
| FULL LOAD AMPS PRIMARY | 9.3/4.3 |
| SERVICE FACTOR AMPS PRIMARY | 11.5/5.5 |
