availability:
In stock
enclosure:
ODP
frame:
56
horsepower:
2
mpn:
D2P1AHC
phase:
3
rpm:
2800-3600
voltage:
200-240, 440-480

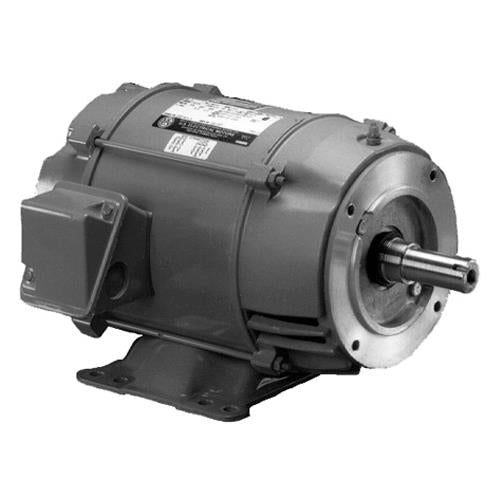

Product Description
- General Purpose
- Three Phase
- Open Dripproof (ODP)
- Premium Efficient
- C Face Footed
Specifications
| Model_Number | P063AJD1342015B |
|---|---|
| PRODUCT NAME | 2 HP - ODP - 3450 |
| PHASETYPE | 3_POLYPHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 2 |
| KILOWATTS | 1.5 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 V |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | HC |
| STATOR DIAMETER | 6.3 |
| STACK | 2 |
| MOUNTING | C-FACE/BASE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 32 |
| THERMAL PROTECTION | NONE |
| BREAKDOWN TORQUE | 171.4 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 94.49 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | J |
| LOCKED ROTOR AMPS | 33.55 |
| NEMA NOMINAL EFFICIENCY | 85.5 |
| FULL LOAD AMPS PRIMARY | 6.0-5.4/2.7 |
| SERVICE FACTOR AMPS PRIMARY | 6.3-5.8/2.9 |
