Product Description
- General Purpose
- Single Phase
- Open Dripproof (ODP)
- Capacitor Start
- C Face Footless
Specifications
| Model_Number | C063HYW5202012B |
|---|---|

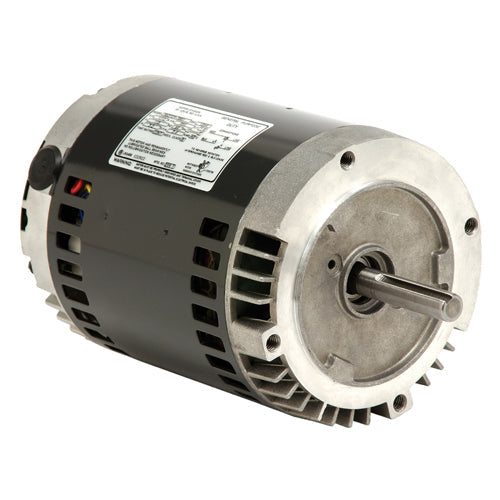

| PRODUCT NAME | .75 HP - ODP - 3450 |
| PHASETYPE | 1_CAPACITOR START |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | .75 |
| KILOWATTS | 0.6 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/208-230 V |
| VOLTS | 115 |
| VOLTS 2 | 208 |
| VOLTS 3 | 230 |
| FRME | 56 |
| SHAFT CODE | C |
| STACK | 1.75 |
| MOUNTING | C-FACE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1.25 |
| STARTCAPMFD | 519 |
| SHIPPING WEIGHT | 32 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | K |
| NEMA NOMINAL EFFICIENCY | 67.8 |
| FULL LOAD AMPS PRIMARY | 10.4/5.3-5.2 |
| SERVICE FACTOR AMPS PRIMARY | 12.1/6.3-6.1 |
