country_of_origin:
TW
manufacturer:
US Motors
mpn:
D34P2AH9
Product Description

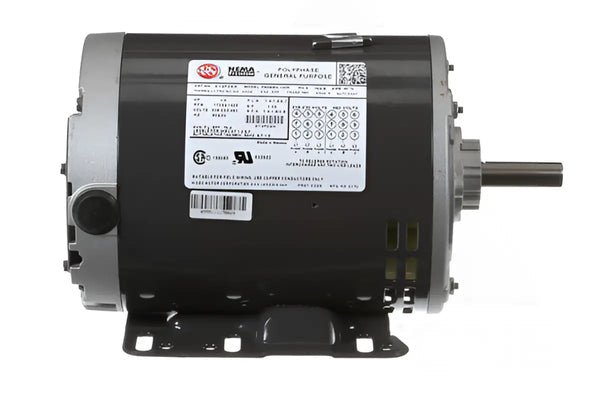

US Motors - D34P2AH9
Features- General Purpose
- Three Phase
- Open Dripproof (ODP)
- Premium Efficient
- Resilient Base
Additional Information
PHASETYPE:3_POLYPHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:.75
KILOWATTS:0.6
POLES:4
NUMBER SPEEDS:1
RPM:1725
RPM 2:1425
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:208-230/460 V
VOLTS :208
VOLTS 2:230
VOLTS 3:460
FRME :56
SHAFT CODE:H
STATOR DIAMETER:6.3
STACK:1.75
MOUNTING:RESILIENT
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:REVERSIBLE
SHIPPING WEIGHT:26
THERMAL PROTECTION:NONE
BREAKDOWN TORQUE:175
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:121.8
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:L
LOCKED ROTOR AMPS:18.48
NEMA NOMINAL EFFICIENCY:82.2
FULL LOAD AMPS PRIMARY:2.8-2.7/1.4
SERVICE FACTOR AMPS PRIMARY:3.1/1.6
