country_of_origin:
TW
manufacturer:
US Motors
mpn:
D50P3E
Product Description

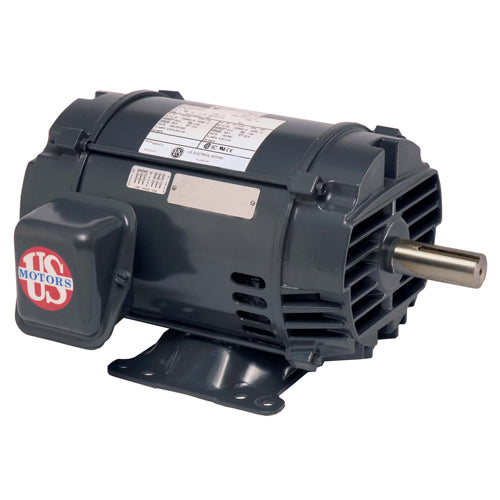

US Motors - D50P3E
Features- Three Phase
- General Purpose
- Open Dripproof (ODP)
- NEMA Premium Efficient
- Rigid Base
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:50
KILOWATTS:37.3
POLES:6
NUMBER SPEEDS:1
RPM:1185
RPM 2:1185
RPM 4:980
RPM 5:980
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
VOLTS 4:400
VOLTS 5:200
FRME :365
SHAFT CODE:T
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:DE
OPPOSITE END BEARING:6212-2Z-J/C3
SHAFT END BEARING:6313-2Z-J/C3
AMBIENT:40
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:635
BREAKDOWN TORQUE:307
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:272
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:J
LOCKED ROTOR AMPS:490.6
NEMA NOMINAL EFFICIENCY:94.1
FULL LOAD AMPS PRIMARY:117/59
SERVICE FACTOR AMPS PRIMARY:134/67
