availability:
In stock
enclosure:
ODP
frame:
145
horsepower:
2
mpn:
DJ2E1DM
phase:
3
rpm:
2800-3600
voltage:
440-480, 200-240, 380-415, 190
Product Description

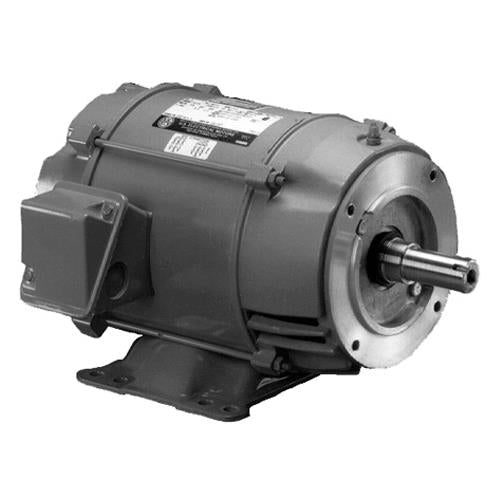

- Special Application Close Coupled Pump
- Three Phase
- Open Dripproof (ODP)
- Energy Efficient
- JM Shaft - Footed
Specifications
| Model_Number | FF31 |
|---|---|
| PRODUCT NAME | 2 HP - ODP - 3500 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 2 |
| KILOWATTS | 1.5 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3500 |
| RPM 2 | 3500 |
| RPM 3 | 3470 |
| RPM 4 | 2865 |
| RPM 5 | 2865 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 145 |
| SHAFT CODE | JM |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | FD4 |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6206-2Z-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 35 |
| BREAKDOWN TORQUE | 371 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 275 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 21.7 |
| NEMA NOMINAL EFFICIENCY | 84 |
| FULL LOAD AMPS PRIMARY | 5.6-5.1/2.5 |
| SERVICE FACTOR AMPS PRIMARY | 6.4-5.7/2.9 |
