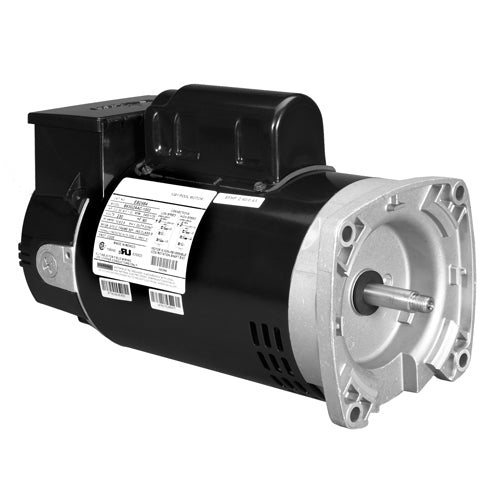

Us Motors -EB2973HT
- Affinity Two Speed with Timer Pool & Spa Motor
- Switchless Design 6.5" Frame Dia
- C-Flange Category "J"
- THP Rated High and Low Speed
- Two Settings: Mon-Fri & Sat-Sun
Specifications
| Model_Number | B063AAT1016013J |
|---|---|
| PRODUCT NAME | .75 HP - - 3450 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | .75 |
| HORSEPOWER 2 | 0.1 |
| POLES | 2 |
| POLES 2 | 4 |
| NUMBER SPEEDS | 2 |
| RPM | 3450 |
| RPM 2 | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230 |
| VOLTS | 230 |
| FRME | 56 |
| SHAFT CODE | J |
| STATOR DIAMETER | 6.3 |
| STACK | 2.125 |
| MOTOR TYPE | FHP |
| SHIPPING WEIGHT | 21 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE UOM | OZFT |
Technical Data
AvailabilityIn stock
CategoryPool & Spa Motors
Horsepower0.75
ManufacturerUS Motors
MpnEB2973HT
Rpm2800-3600
SubcategoryPool Pump Motors
TypeC-Face Pool Pump Motor (Two-Speed)
Voltage200-240
