availability:
In stock
frame:
56
horsepower:
1.25
mpn:
EB972
phase:
1
rpm:
2800-3600, 1400-1800
voltage:
100-120
Product Description

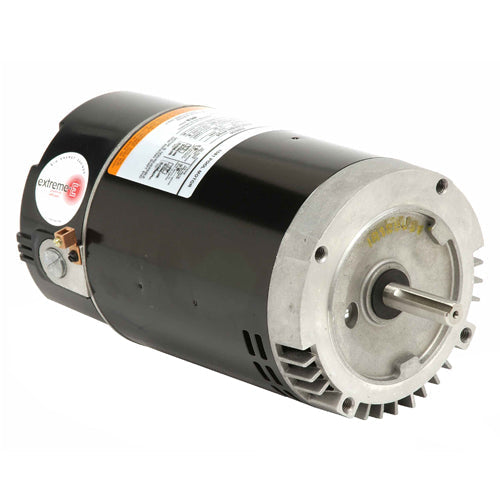

- 56 C Flange Pool & Spa Motors
- Switchless Design 6.5" Diameter Category "S" & "J"
- Premium Efficient
- Full Service Factor Full Rated Soft Start
Specifications
| Model Number | R063DNK0204013J |
|---|---|
| PRODUCT NAME | 1.25 HP - - 3450 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | 1.25 |
| HORSEPOWER 2 | 0.2 |
| POLES | 2 |
| POLES 2 | 4 |
| NUMBER SPEEDS | 2 |
| RPM | 3450 |
| RPM 2 | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115 |
| VOLTS | 115 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 2 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6304 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 50 |
| ROTATION | CCW DRIVE END |
| RUNCAPMFD | 35 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 28 |
| BREAKDOWN TORQUE | 68.73 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 6.71 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | A |
| LOCKED ROTOR AMPS | 54.84 |
| FULL LOAD AMPS PRIMARY | 11.2/5.0 |
