country_of_origin:
TW
manufacturer:
US Motors
mpn:
EEQK1000
Product Description

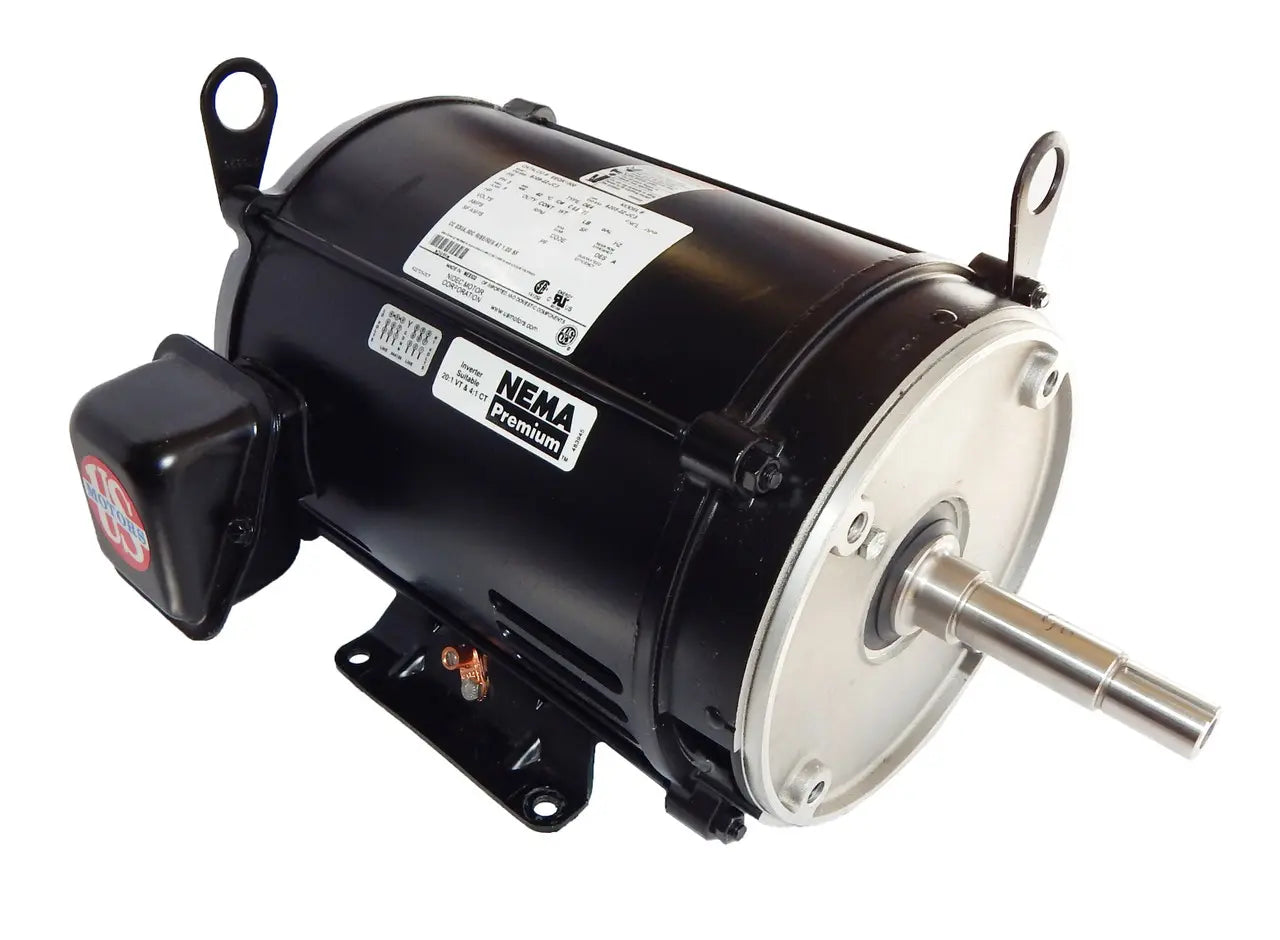

US Motors - EEQK1000
Features- Pentair "EQ" Pump Series Replacement
- Pool Spa
- Special JMZ Mounting
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:10
KILOWATTS:7.5
POLES:2
NUMBER SPEEDS:1
RPM:3525
RPM 2:3525
RPM 3:3505
HERTZ:60
VOLTS PRIMARY:208-230/460
VOLTS :460
VOLTS 2:230
VOLTS 3:208
FRME :213
SHAFT CODE:JMZ
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:DE4
OPPOSITE END BEARING:6205-2Z-J/C3
SHAFT END BEARING:6309-2Z-J/C3
AMBIENT:40
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:90
BREAKDOWN TORQUE:341
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:213
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:J
LOCKED ROTOR AMPS:93.7
NEMA NOMINAL EFFICIENCY:90.2
FULL LOAD AMPS PRIMARY:27-26.2/13.1
SERVICE FACTOR AMPS PRIMARY:31-29.4/14.7
