country_of_origin:
TW
manufacturer:
US Motors
mpn:
EEQK500
Product Description

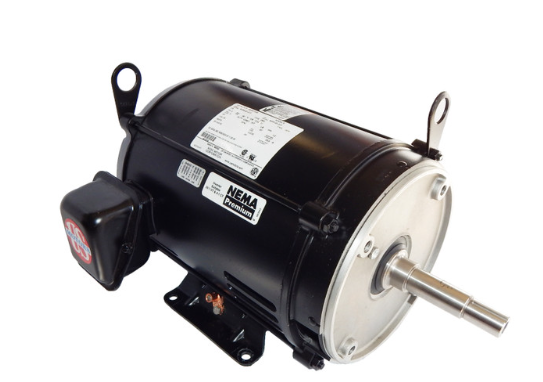

US Motors - EEQK500
Features- Pentair "EQ" Pump Series Replacement
- Pool Spa
- Special JMZ Mounting
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:ODP
HORSEPOWER:5
KILOWATTS:3.7
POLES:2
NUMBER SPEEDS:1
RPM:3515
RPM 2:3515
RPM 3:3490
HERTZ:60
VOLTS PRIMARY:208-230/460
VOLTS :460
VOLTS 2:230
VOLTS 3:208
FRME :182
SHAFT CODE:JMZ
MOUNTING:HORZ-FOOTED
ASSEMBLY POSITION:F1
MOTOR TYPE:DE4
OPPOSITE END BEARING:6205-2Z-J/C3
SHAFT END BEARING:6207-2Z-J/C3
AMBIENT:40
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:50
BREAKDOWN TORQUE:314
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:258
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:J
LOCKED ROTOR AMPS:47
NEMA NOMINAL EFFICIENCY:89.5
FULL LOAD AMPS PRIMARY:13.5-12.3/6.2
SERVICE FACTOR AMPS PRIMARY:0-14/7
