country_of_origin:
TW
manufacturer:
US Motors
mpn:
EV230
Product Description

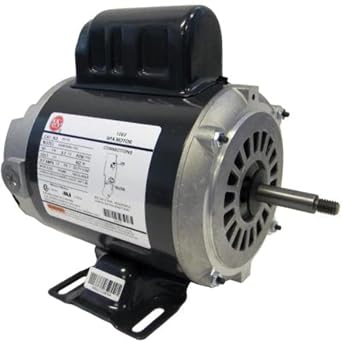

US Motors - EV230
Features- Thru-Bolt Pool Spa Motors
- 5.5" Frame Diameter
- Single Speed
- Spa Circulator Motor
Additional Information
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:OPEN
HORSEPOWER:.067
KILOWATTS:0.1
POLES:4
NUMBER SPEEDS:1
RPM:1425
RPM 2:1725
HERTZ:50
HERTZ 2:60
VOLTS PRIMARY:230 V
VOLTS :230
STATOR DIAMETER:5.5
STACK:1
MOUNTING:RIGID BASE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:40
ROTATION:CCW DRIVE END
SERVICE FACTOR:1
RUNCAPMFD:5
RUNCAPVOLTS:440
SHIPPING WEIGHT:12
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:14.08
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:8.56
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
KVA CODE LETTER:L
LOCKED ROTOR AMPS:1.75
FULL LOAD AMPS PRIMARY:.63
