country_of_origin:
TW
manufacturer:
US Motors
mpn:
HO40P3BLGX
Product Description

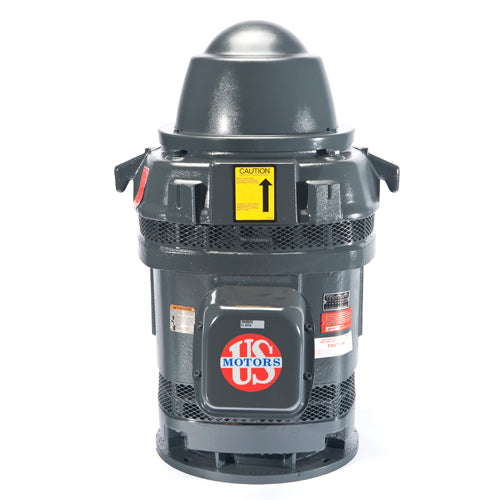

US Motors - HO40P3BLGX
Features- Vertical Motors
- Three Phase Weather Protected Type I (WPI)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:WPI
HORSEPOWER:40
KILOWATTS:29.8
POLES:6
NUMBER SPEEDS:1
RPM:1190
RPM 2:1190
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :364
SHAFT CODE:TP
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:RUS
OPPOSITE END BEARING:7220 BECBP
SHAFT END BEARING:6211-J
AMBIENT:40
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:730
BREAKDOWN TORQUE:269
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:233
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:H
LOCKED ROTOR AMPS:348.7
NEMA NOMINAL EFFICIENCY:94.1
FULL LOAD AMPS PRIMARY:102/51
SERVICE FACTOR AMPS PRIMARY:116/58
