country_of_origin:
TW
manufacturer:
US Motors
mpn:
HT15P1BLE
Product Description

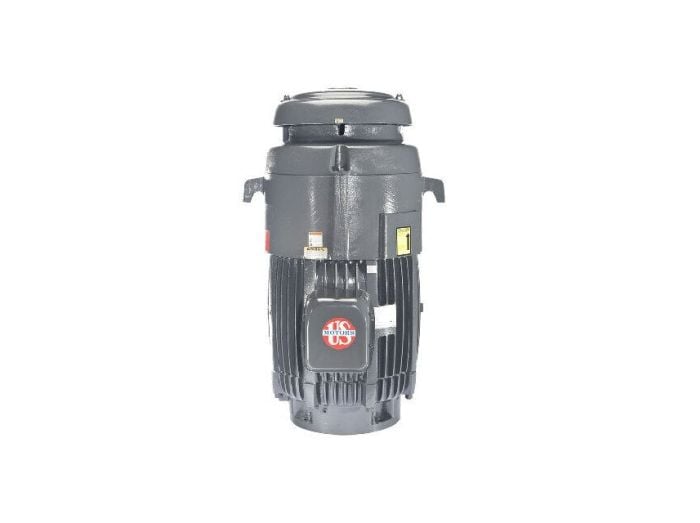

US Motors - HT15P1BLE
Features- Vertical Motors
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:15
KILOWATTS:11.2
POLES:2
NUMBER SPEEDS:1
RPM:3531
RPM 2:3531
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :215
SHAFT CODE:TP
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:TUS
OPPOSITE END BEARING:6208-2Z-J/C3
SHAFT END BEARING:7309 BEP
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:220
BREAKDOWN TORQUE:311
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:189
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:H
LOCKED ROTOR AMPS:127.7
NEMA NOMINAL EFFICIENCY:91
FULL LOAD AMPS PRIMARY:35/17.6
SERVICE FACTOR AMPS PRIMARY:40/20.2
