country_of_origin:
TW
manufacturer:
US Motors
mpn:
HT25P2BLF
Product Description

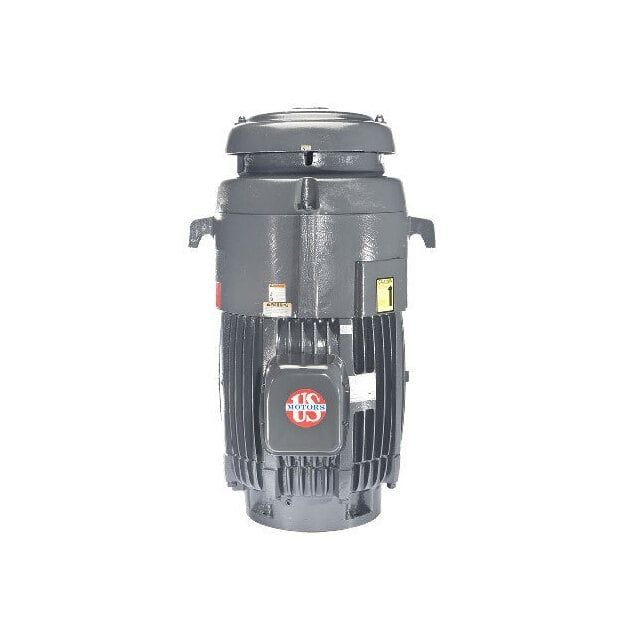

US Motors - HT25P2BLF
Features- Vertical Motors
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:25
KILOWATTS:18.6
POLES:4
NUMBER SPEEDS:1
RPM:1770
RPM 2:1770
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :284
SHAFT CODE:TPA
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:TUS
OPPOSITE END BEARING:6210-2Z-J/C3
SHAFT END BEARING:7310 BEP
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:320
BREAKDOWN TORQUE:235
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:242
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:178
NEMA NOMINAL EFFICIENCY:93.6
FULL LOAD AMPS PRIMARY:58/28.9
SERVICE FACTOR AMPS PRIMARY:67/34
