country_of_origin:
TW
manufacturer:
US Motors
mpn:
HT50P2BLG
Product Description

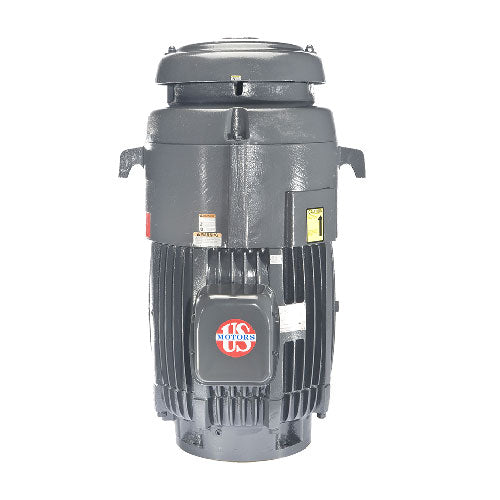

US Motors - HT50P2BLG
Features- Vertical Motors
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:50
KILOWATTS:37.3
POLES:4
NUMBER SPEEDS:1
RPM:1780
RPM 2:1780
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :326
SHAFT CODE:TP
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:TUS
OPPOSITE END BEARING:6212-J/C3
SHAFT END BEARING:7312 BEP
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:690
BREAKDOWN TORQUE:244
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:198
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:359
NEMA NOMINAL EFFICIENCY:94.5
FULL LOAD AMPS PRIMARY:116/58
SERVICE FACTOR AMPS PRIMARY:133/67
