country_of_origin:
TW
manufacturer:
US Motors
mpn:
HT5P2BLE
Product Description

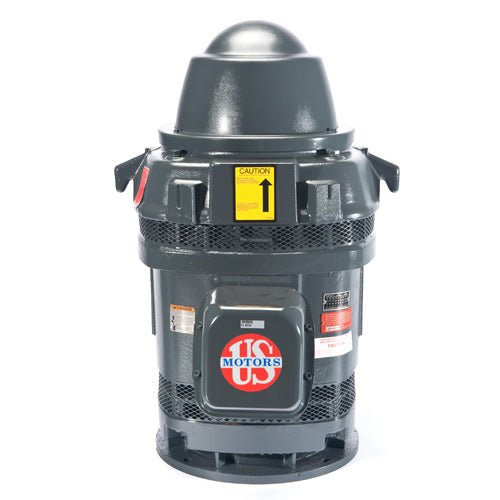

US Motors - HT5P2BLE
Features- Vertical Motors
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:5
KILOWATTS:3.7
POLES:4
NUMBER SPEEDS:1
RPM:1770
RPM 2:1770
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :184
SHAFT CODE:TP
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:TUS
OPPOSITE END BEARING:6208-2Z-J/C3
SHAFT END BEARING:7309 BEP
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:187
BREAKDOWN TORQUE:359
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:265
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:J
LOCKED ROTOR AMPS:49
NEMA NOMINAL EFFICIENCY:90.2
FULL LOAD AMPS PRIMARY:13.5/6.8
SERVICE FACTOR AMPS PRIMARY:15/7.5
