Product Description

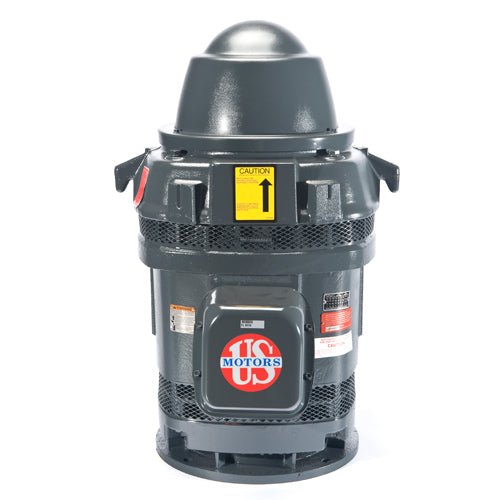

US Motors - HT7P2BLE
Features- Vertical Motors
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Additional Information
PHASETYPE:3_PHASE
MOTOR ENCLOSURE:TEFC
HORSEPOWER:7.5
KILOWATTS:5.6
POLES:4
NUMBER SPEEDS:1
RPM:1765
RPM 2:1765
HERTZ:60
VOLTS PRIMARY:230/460
VOLTS :460
VOLTS 2:230
FRME :213
SHAFT CODE:TP
MOUNTING:VERT
ASSEMBLY POSITION:NA
MOTOR TYPE:TUS
OPPOSITE END BEARING:6208-2Z-J/C3
SHAFT END BEARING:7309 BEP
AMBIENT:40
ROTATION:DUAL
SERVICE FACTOR:1.15
STARTCAPMFD:N\A
SHIPPING WEIGHT:223
BREAKDOWN TORQUE:309
BREAKDOWN TORQUE UOM:PERCENT OF FLT
LOCKED ROTOR TORQUE:239
LOCKED ROTOR TORQUE UOM:PERCENT OF FLT
INSULATION CLASS:F
KVA CODE LETTER:H
LOCKED ROTOR AMPS:62
NEMA NOMINAL EFFICIENCY:91.7
FULL LOAD AMPS PRIMARY:18/9
SERVICE FACTOR AMPS PRIMARY:20.6/10.3
