category:
Pump Motors
country_of_origin:
Motors
frame:
56
horsepower:
2
manufacturer:
US Motors
mpn:
JS2002-2
phase:
1
rpm:
2800-3600
subcategory:
Jet Pump Motor (Square Flange)
voltage:
200-240
Product Description

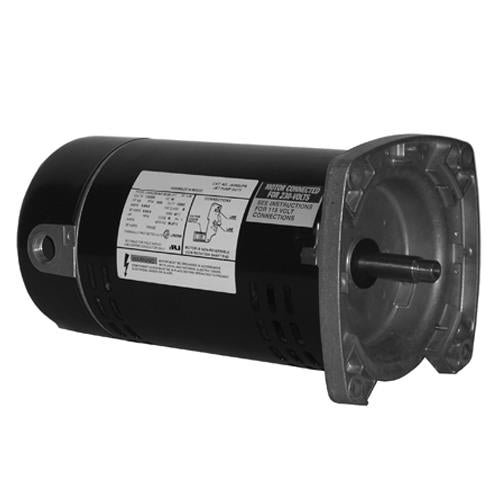

Us Motors -JS2002-2
- Special Application
- Single Phase Open Dripproof (ODP)
- Jet Pump Square Flange
- Capacitor Start
- Two Compartment Product EZ-Access Motors
Specifications
| Model_Number | T055CNE1420013J |
|---|---|
| PRODUCT NAME | 2 HP - - 3450 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | 2 |
| KILOWATTS | 1.5 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230 |
| VOLTS | 230 |
| FRME | 56 |
| SHAFT CODE | YZ |
| STATOR DIAMETER | 5.5 |
| STACK | 3 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 40 |
| ROTATION | CCW DRIVE END |
| SERVICE FACTOR | 1.3 |
| RUNCAPMFD | 25 |
| RUNCAPVOLTS | 370 |
| STARTCAPMFD | 340.2 |
| SHIPPING WEIGHT | 28 |
| BREAKDOWN TORQUE | 117.9 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 113.1 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 63.34 |
| FULL LOAD AMPS PRIMARY | 8.6 |
| SERVICE FACTOR AMPS PRIMARY | 11.0 |
