country_of_origin:
TW
manufacturer:
US Motors
mpn:
SPH20FL2CS
Features

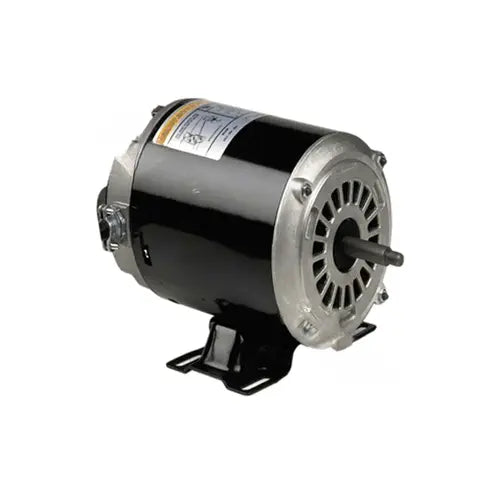

- Thru-Bolt Pool & Spa Motors
- 5.5" Frame Diameter
- Two Speed Soft Start
Additional Information
PHASETYPE:1_CAPACITOR START
MOTOR ENCLOSURE:ODP
HORSEPOWER:2
HORSEPOWER 2:0.025
KILOWATTS:1.5
POLES:2
POLES 2:4
NUMBER SPEEDS:2
RPM:3450
RPM 2:1725
HERTZ:60
VOLTS PRIMARY:230 V
VOLTS :230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:3.75
MOUNTING:THRU BOLT W/BASE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CCW DRIVE END
SERVICE FACTOR:1
STARTCAPMFD:198.45
SHIPPING WEIGHT:29
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:31.92
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:28.28
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:A
LOCKED ROTOR AMPS:15.47
FULL LOAD AMPS PRIMARY:10.5/3.0
