country_of_origin:
TW
manufacturer:
US Motors
mpn:
SPH25FL1
Product Description

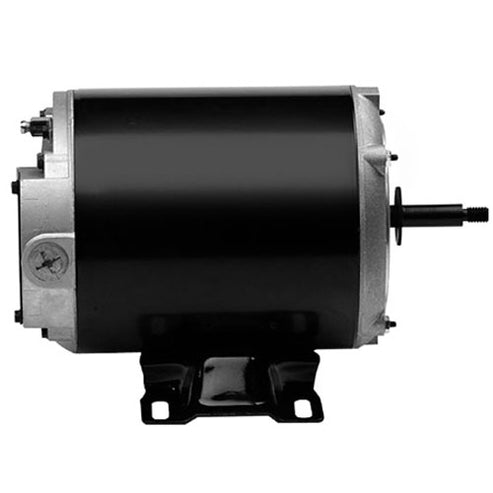

US Motors - SPH25FL1
Features- Thru-Bolt Pool Spa Motors
- 5.5" Frame Diameter
- Single Speed
Additional Information
PHASETYPE:1_CAPACITOR START -
MOTOR ENCLOSURE:ODP
HORSEPOWER:2.5
KILOWATTS:1.9
POLES:2
NUMBER SPEEDS:1
RPM:3450
HERTZ:60
VOLTS PRIMARY:230 V
VOLTS :230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:3.5
MOUNTING:THRU BOLT W/BASE
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:50
ROTATION:CCW DRIVE END
SERVICE FACTOR:1
RUNCAPMFD:25
STARTCAPMFD:136.5
SHIPPING WEIGHT:32
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:140.9
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:98.51
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:G
LOCKED ROTOR AMPS:48.8
FULL LOAD AMPS PRIMARY:10
